IP54 cable entry plate KES-R M63/K 24-50 GR

IP66UL94 V-0for cables

Product overview

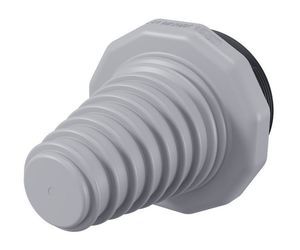

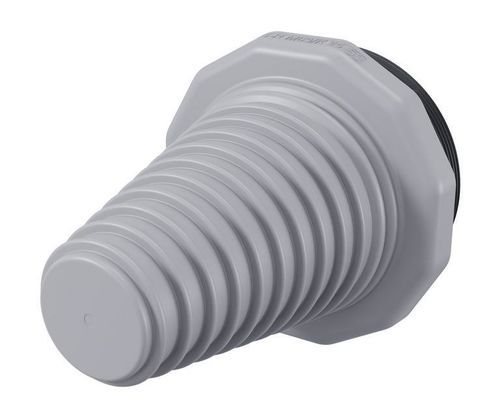

Round cable entry KES-R M63/K for non-assembled cables. Cable diameter range 24–50 mm. Mounting: snap-in and screw-on. Dimensions (H x L x W): 97.5 x 73 x 73 mm. Installation height: 77.5 mm. Protection rating: IP66 (screw mounting) / IP54 (snap-in). Colour: Grey.

Commercial data

• Model: KES-R M63/K
• Item no.: 28929.6
• GTIN (EAN): 4044211254919
• Customs number: 39259020
• Country of origin: DE
• Packaging type: plastic bag
• Packaging unit: 5 PC
• Unit: PC
• Weight per piece: 50.87 g (without packaging); 53.51 g (with packaging)

Technical data
Dimensions
Height: 97.5 mm
Installation height: 77.5 mm
Length: 73 mm
Width: 73 mm

Connection data
Cable diameter, min.: 24 mm
Cable diameter, max.: 50 mm
Number of wires: 1
Designed for non-assembled cables

Further technical data
Degree of protection: IP66 (screw mounting) / IP54 (snap-in mounting)
Mounting type: Snap-on and screw-on
Torque for locknut: 7 Nm
Wall thickness with locknut, max.: 11 mm
Wall thickness with snap-in, max.: 2.5 mm
Min wall thickness: 1 mm

Materials

• Material: Polyamide 6.6
• Sealing material: TPE
• Flammability class UL 94: V-0
• Halogen-free: ✓
• Silicone-free: ✓
• Operating temperature: -40 °C to 80 °C

Environment / Compliance

• REACH: ✓ (reference date: 2026-02-04)
• RoHS: ✓
• EU-POP: ✓
• PROP 65: ✓
• TSCA: ✓
• REACH Candidate Substance Note: ✗

Technical specifications

• Type: Round cable entry (M63) with cone
• Cable diameter range: 24–50 mm
• Mounting: Snap-on and screw-on; torque for locknut 7 Nm
• Protection rating: IP66 (screw mounting), IP54 (snap-in)
• Material: Polyamide 6.6; sealing: TPE; UL94 V-0
• Temperature range: -40 °C to 80 °C
• Dimensions (H x L x W): 97.5 x 73 x 73 mm
• Packaging: plastic bag, 5 PC; GTIN: 4044211254919
