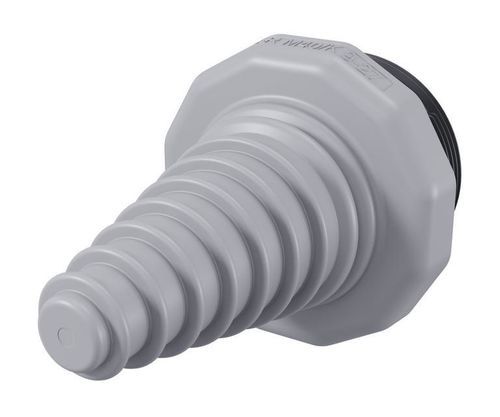

UL94 V-0 cable entry system KES-R M40/K 9-27 GR

IP54IP66for cables

Short description
Round M40 cable entry with cone for non-assembled cables. Mounting: snap-in and screw. External dimensions 51 × 51 mm (L×W), overall height 79.5 mm, installation height 59.5 mm. Protection rating up to IP66 (screw mounting). Colour: Grey.

Commercial data

• Item no.: 28927.6
• Model: KES-R M40/K 9-27 GR
• GTIN (EAN): 4044211254896
• Customs number: 39259020
• Country of origin: DE
• Packaging type: plastic bag
• Packaging unit: 5 PC
• Weight per piece (without packaging): 24.95 g
• Weight per piece (including packaging): 26.27 g

Technical data
Dimensions

• Length: 51 mm
• Width: 51 mm
• Height: 79.5 mm
• Installation height: 59.5 mm

Connection data

• Cable diameter, min.: 9 mm
• Cable diameter, max.: 27 mm
• Number of wires: 1
• Type of cables: without plug

Further technical data

• Protection class: IP66 (screw mounting), IP54 (snap-in mounting)
• Mounting type: Snap-on and screw-on
• Torque for the locknut: 7 Nm
• Wall thickness, min.: 1 mm; with lock nut max.: 11 mm; snap-in max.: 2.5 mm
• Shape of wall cutout: round

Materials

• Material: Polyamide 6.6
• Sealing material: TPE
• Flammability class UL 94: V-0
• Halogen-free: ✓
• Silicone-free: ✓
• Operating temperature: -40 °C to 80 °C

Environment / Conformity

• REACH: ✓ (reference date: 2026-02-04)
• RoHS: ✓
• EU-POP: ✓
• PROP 65: ✓
• TSCA: ✓
• REACH Candidate Substance Note: no

Downloads (available)
Datasheet (PDF) available. STEP file: 28927.6_KES-R_M40_K_9-27.stp (650 KB).

Technical specifications

• Model: KES-R M40/K
• Item no.: 28927.6
• EAN (GTIN): 4044211254896
• Mounting: Snap-in and screw
• Protection class: IP66 (screw), IP54 (snap-in)
• Cable diameter range: 9–27 mm
• Dimensions (L×W×H): 51 × 51 × 79.5 mm
• Material: Polyamide 6.6; Sealing: TPE
• Operating temperature range: -40 °C to 80 °C
• Weight per piece (without packaging): 24.95 g
