IP54 cable entry plate KES-R M25/K 3-13 GR

IP66UL94 V-0for cables

Product overview

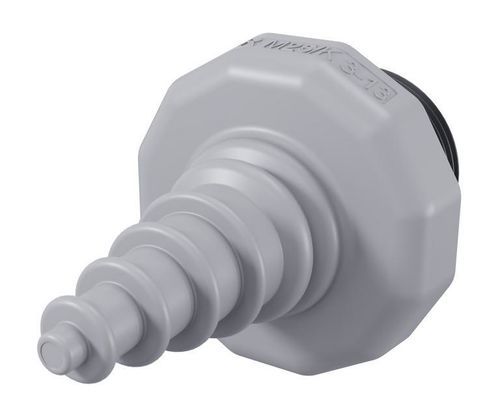

Round cable entry (cone) for non-assembled cables, model KES-R M25/K 3-13 GR. Designed for snap-in and screw mounting; provides IP54 when snapped and IP66 when screw-mounted. Material: polyamide 6.6 with TPE sealing. Colour: grey.

Commercial data

• Article number: 28925.6
• GTIN (EAN): 4044211254872
• Country of origin: DE
• Customs tariff number: 39259020
• Packaging type: plastic bag
• Packaging unit: 5 PC
• Weight per piece (incl. packaging): 14.92 g
• Weight per piece (excl. packaging): 14.1 g

Technical data
Dimensions

• Overall height: 61.5 mm
• Installation height: 41.5 mm
• Length: 38 mm
• Width: 38 mm

Connection data

• Cable diameter range: 3 mm – 13 mm
• Number of conductors: 1

Further technical data

• Thread / entry size: M25
• Mounting: snap-in (quick assembly) and screw-on
• Degree of protection: IP66 (screw mounting), IP54 (snap-in mounting)
• Wall thickness with locknut mounting, max.: 11 mm
• Wall thickness with snap-in mounting, max.: 2.5 mm
• Min. wall thickness: 1 mm
• Torque for locknut: 3 Nm
• Suitable for cables without plug
• Cutout shape: round

Materials & temperatures

• Material: Polyamide 6.6
• Sealing material: TPE
• Flammability class UL 94: V-0
• Halogen-free: yes
• Silicone-free: yes
• Operating temperature range: -40 °C to 80 °C

Environment & compliance

• REACH conform (reference date: 2026-02-04)
• RoHS conform
• EU-POP conform
• PROP 65 conform
• TSCA conform

Downloads
STP model available for CAD integration (file listed on page).

Technical features

• Model family: KES-R
• Reference: KES-R M25/K 3-13 GR
• Cable diameter: 3–13 mm
• Protection rating: IP66 (screw), IP54 (snap-in)
• Material: Polyamide 6.6 with TPE seal
• Dimensions (L × W × H): 38 × 38 × 61.5 mm
• Weight (per piece, without packaging): 14.1 g
• Colour: grey
