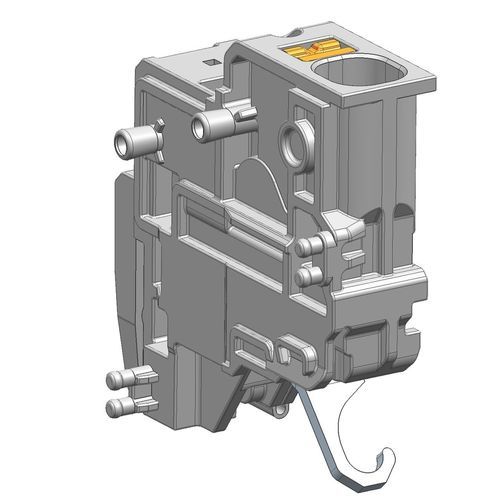

Plug-in wire terminal PTKS 4/1 GR

rectangular

Transformerterminal for building odd pole numbers, Push-in connection, Mounting type: Custom profile, Rated cross-section: 4 mm², Width: 8.1 mm, Colour: Grey Colour: - Grey Packaging unit: - 50 Quantity unit: - PC Weight per piece (not including packaging): - 5.29 g Weight per piece (including packaging): - 5.42 g Unit of weight: - G Customs number: - 85369010 Country of origin: - DE Prio-Article: - 27080.6 Product description: - Transformer terminal Length: - 32.5 mm Width: - 8.1 mm Height: - 35.4 mm Rated voltage: - 800 V Rated current: - 32 A Rated cross-section: - 4 mm² Rated impulse voltage: - 8 kV Overvoltage category: - III Contamination degree: - 3 Maximum power dissipation for nominal condition: - 1.02 W Connection principle: - Push-in connection Connection position: - Top Connections: - 1 Wire cross-section single-core (rigid) / stranded, min.: - 0.5 mm² Wire cross-section single core (rigid)/stranded, max.: - 6 mm² Wire cross-section stranded, min.: - 0.5 mm² Wire cross-section stranded, max.: - 4 mm² Wire cross-section stranded with wire-end ferrules, min.: - 0.5 mm² Wire cross-section stranded with wire-end ferrules, max.: - 4 mm² Wire cross-section AWG, min.: - 21 Wire cross-section AWG, max.: - 10 Stripping length: - 12 mm
