Water cooler WPAmini TECHNO
for the food industryfor the automotive industryfor the plastics industry

water cooler
water cooler
water cooler
Add to favorites
Compare this product


Characteristics

Material
water
Applications
for the food industry, for the automotive industry, for the plastics industry
Other characteristics
high-performance, air condenser, scroll compressor
Power

Min.: 95,000 W
(324,153.3 BTU/h)

Max.: 170,000 W
(580,063.8 BTU/h)

Maximum temperature

Min.: -40 °C
(-40 °F)

Max.: 55 °C
(131 °F)

Description

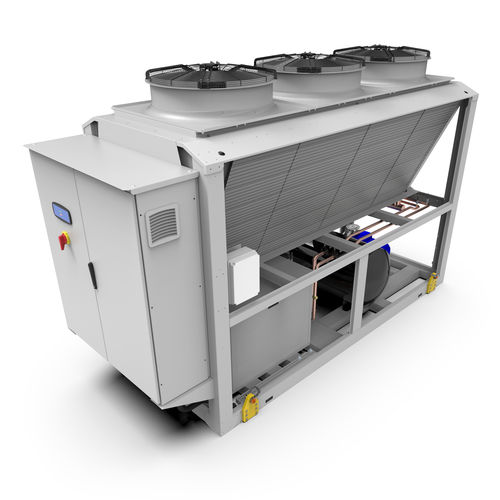

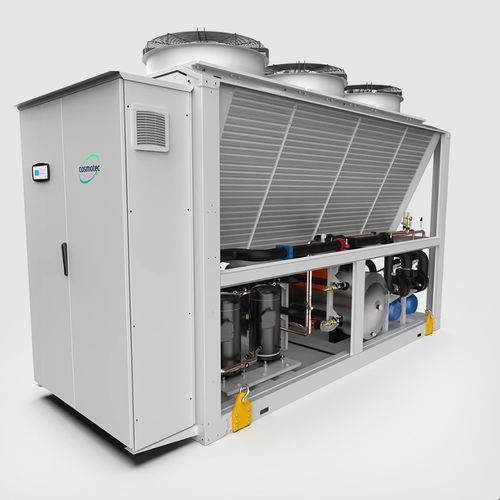

Air Cooled Industrial Liquid Chiller Air cooled chillers designed for process cooling 24/7, 365 days a year, characterized by two refrigerant circuits with scroll compressors in tandem optimized for the use of R410A, plate evaporator and cooling capacity from 95 kW to 170 kW. Cosmotec experience in process cooling has led to the development of this range of industrial chillers able to meet the wide operating limits (both ambient and user side) required by the new technologies used for energy saving. All chillers in the WPAmini range feature high levels of energy efficiency (Class A or B) and compliance with the limits required by the 2009/125/EC Ecodesign ErP 2021 Directive. The integrated Free Cooling version available for the WPAmini range allows strong energy saving especially in case of installations in areas with cold or temperate climates. Even in the Low Noise version, ideal for installations near residential areas, our units maintain high performance and high energy savings, ensuring low noise. The Electronic Expansion Valve (EEV) optimizes temperature and pressure of gas evaporation, increasing the efficiency at partial loads on the user side and helping to extend the operating range of the unit. The Microchannel condensers are entirely made of aluminium and expressly designed to maximize the performance of the chiller, and allow the reduction the overall dimensions and the minimization of the refrigerant charge. For a better resistance to corrosion, the e-coating protective treatment is available (option).
