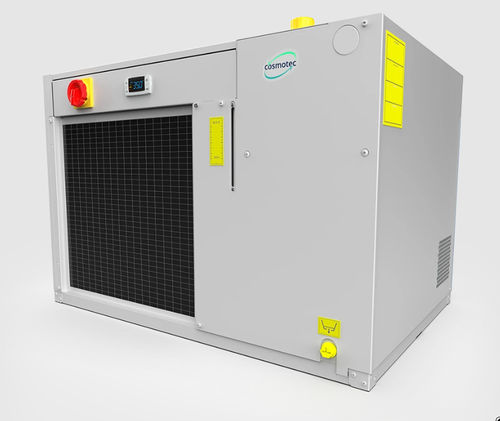

Water cooler WLA Compact
industrialsurfacecompact

water cooler
water cooler
water cooler
water cooler
water cooler
Add to favorites
Compare this product


Characteristics

Material
water
Applications
industrial, surface
Other characteristics
compact, rotary, air-cooled, brazed plate
Power

Min.: 0.6 kW

Max.: 5.66 kW

Maximum temperature

Min.: -10 °C
(14 °F)

Max.: 45 °C
(113 °F)

Flow rate

Min.: 1 l/min
(0.264 us gal/min)

Max.: 16.2 l/min
(4.28 us gal/min)

Pressure

Min.: 0.12 bar
(1.74 psi)

Max.: 3.63 bar
(52.649 psi)

Description

The performance of modern industrial processes is closely influenced by variations in their operating temperature and can be compromised by dangerous overheating. The new WLA Compact industrial chillers are designed to provide accurate temperature control of the process fluid and reliable operation in a wide range of industrial applications such as: cooling of machine tools, lasers, presses, extruders, and for the chemical, pharmaceutical, food and medical sectors. Technical features Cooling Circuit Piston (mod. 02-03), rotary (mod. 05-08) or scroll (mod. 10-13) compressor New plate heat exchangers optimised for high evaporation temperatures New finned coil condensers protected by a metal anti-particulate filter and with reduced tube diameter: they reduce the refrigerant charge by about 20%. HP high pressure switch with manual reset Thermostatic lamination valve Hydraulic Circuit Atmospheric pressure hydraulic circuit constructed from non-ferrous materials New HDPE inertia tank with increased volume equipped with visual level indicator, filling/draining connections and overflow Automatic bronze bypass valve as standard Standard flow switch Pressure gauge 0-6 barg
