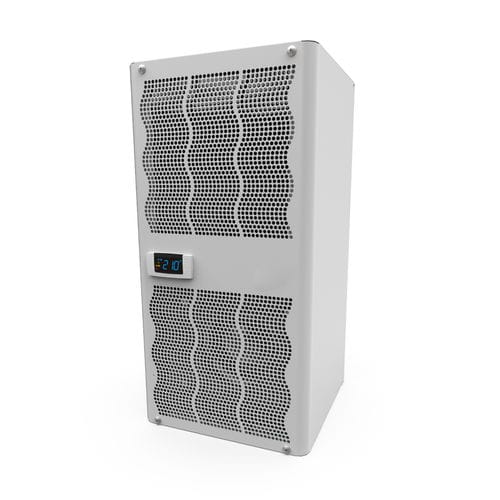

Vertical electrical cabinet air conditioner Protherm CNE/CNO
compactindustrialoutdoor

vertical electrical cabinet air conditioner
vertical electrical cabinet air conditioner
vertical electrical cabinet air conditioner
Add to favorites
Compare this product


Characteristics

Configuration
vertical
Type
compact
Applications
industrial
Other characteristics
outdoor
Cooling power

Min.: 340 W
(1,160.13 BTU/h)

Max.: 1,050 W
(3,582.75 BTU/h)

Height

565 mm
(22 in)

Width

280 mm
(11 in)

Depth

220 mm, 278 mm
(9 in, 11 in)

Noise level

55 dB, 58 dB

Description

Complete and Compact Solution Compact Protherm is the range of industrial air conditioners designed for installations where units with small overall dimensions in terms of width or height are required. The technical solutions available distinguish these compact air conditioners for electrical panels for flexibility, reliability and efficiency. Optimised and compact layout In industrial automation, production space is an increasingly valuable asset and there is a need to find solutions that combine high performance with optimised layouts, such as cabinets with a depth of 300mm/12″. However, the optimisation of the space also generates a greater density of electronic control components, worsening the thermal conditions of the system, which must be protected even more carefully against overheating in order to guarantee continuity of service. Compact Protherm, an evolution of our bestseller, offers a Thermal Management solution suitable for placement on the side of all electrical cabinets up to 300mm deep, thanks to a width of only 280mm. In addition, the range also features a low height of 565mm, allowing it to be installed in electrical boxes integrated into machine tools. Main Features Application: available in Indoor (CNE) and Outdoor (CNO) versions Dimensions: suitable for installation on 300mm (12″) electrical panels or 600mm high boxes Wide choice of power supplies: available in 115V, 230V, 400/460V, 208V on request Efficiency: despite their compact size, the air conditioners have high EER and allow high savings Extended operating range: operational up to an outside temperature of 55°C, and set point up to 20°C (depending on model)
