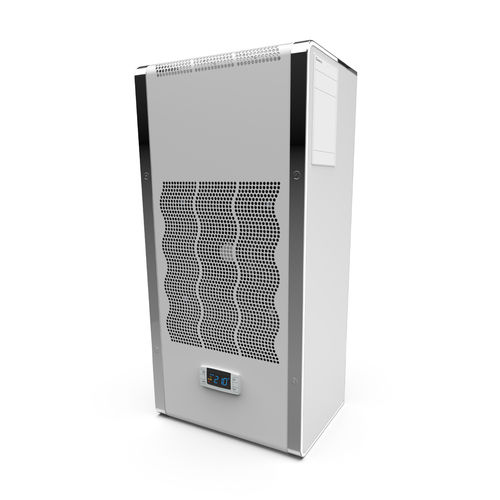

Side-mount electrical cabinet air conditioner Protherm CVE-CVO

side-mount electrical cabinet air conditioner
side-mount electrical cabinet air conditioner
side-mount electrical cabinet air conditioner
side-mount electrical cabinet air conditioner
Add to favorites
Compare this product


Other characteristics
outdoor, air-cooled
Cooling power

Min.: 360 W
(1,228.37 BTU/h)

Max.: 5,600 W
(19,107.98 BTU/h)


315 mm, 325 mm, 400 mm, 413 mm, 556 mm
(12 in, 13 in, 16 in, 16 in, 22 in)


206 mm, 223 mm, 248 mm, 400 mm, 403 mm
(8 in, 9 in, 10 in, 16 in, 16 in)

Noise level

52 dB, 60 dB, 64 dB, 65 dB

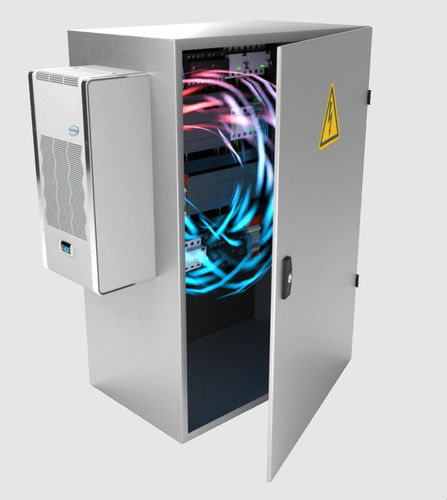

Protherm Indoor The growing need for energy consumption to be reduced has lead to the creation of high efficient air conditioners, whilst maintaining sturdiness, reliability and compactness, as happens with Protherm Indoor air conditioner for electrical enclosures. CVE air conditioners, for Indoor applcations, are characterised by a smart design, a display for the information visualisation (except CVE03) and a condensate dissipating device (from CVE11 and CVE07S). Thanks to the introduction of new components and of SEM and SEM² is possible to obtain up to 23% of energy saving, with an increase of the air conditioner’s cooling capacity. Several installations For Indoor electrical enclosures (Protherm Indoor CVE) and for Outdoor cabinets (Protherm Outdoor CVO) Cooling Capacity Wide range of cooling capacity: from 360W to 5600W, the largest range available on the market, with 9 available sizes Wide choice of power supplies The units are available in 115V, 230V e 400V/460V Extended operating range Protherm units can work in ambient with temperature between +20/+55 (CVE), -20/+55 (CVO, CE), -40 (CVO, UL) Certifications • ISO 9001 • ISO 14001 • ISO 50001 • UL Certificate • EAC Air Conditioner • Certificate F.GAS General Features • CVE (07/15/25)00S available for semi-flush mounting • Electronic Board XCB + display • SEM and SEM² functions (with accessory) • Sequencing and Modbus (with accessories) • Condensate dissipating device from CVE11 and on CVE0700S • Quick connections (CE version except CVE03) • μchannel condenser ( from CVE11 + CVE0700S) • General Alarm contacts and remote control std (except CVE03)
