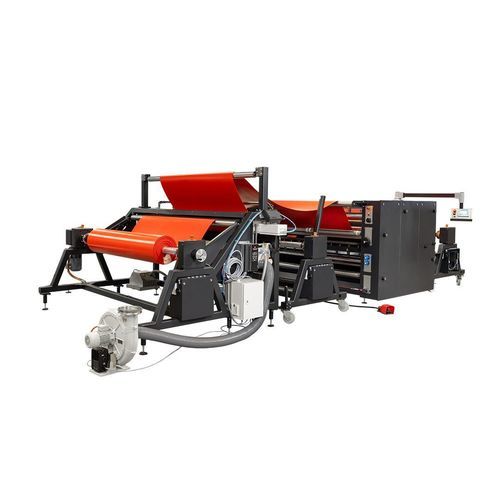

Jumbo roll laminating machine WSL

roll-to-rollrollindustrial

Overview
The Crest WSL is the high-precision slitter rewinder & laminator for specialty foams and films. Custom-built for tension-sensitive converters executing complex single-pass and multi-pass laminating workflows. It integrates pneumatic circular slitting, loop-controlled center winding and an optional inline lamination station to enable slitting, rewinding and lamination in one platform without material deformation or telescoping.

Key capabilities

• Pneumatic circular slitting for accurate, clean edges and rapid knife changeover
• Loop-controlled center winding to prevent telescoping and maintain uniform roll density
• Optional inline Corona surface activation for improved adhesive anchoring
• Dual-roller nip lamination to eliminate micro-air inclusions and ensure homogeneous composite quality
• Heavy-duty platform capable of handling jumbo master rolls

Applications

• Deformation-free master roll converting of advanced foams and compressible substrates
• High-precision slitting for industrial converters requiring burr-free, adhesive-bleed-free edges
• Multi-pass lamination workflows (e.g., foam activation + backing application) on a single platform

One platform — dual-pass workflow
PASS 1: Foam Activation & Adhesive Coating
The raw specialty foam is unwound and passed through the Corona Treatment Unit to activate its surface, then a high-tack adhesive layer is laminated under precise nip pressure to guarantee a strong bond.

PASS 2: Plastic Backing Application
The laminated adhesive foam from Pass 1 is fed back into the line; the machine applies the plastic backing film (Corona off) and simultaneously uses pneumatic circular knives to slit the final laminate to customer widths.

Suitable materials

• Technical foam laminates (examples: ProBAK®, Softprint®, Cushion-Mount™)
• Flexographic backing & compressible foams
• Polyester (PET) and PVC plastic backing films
• High-tack self-adhesive laminates
• Protective films and release liners

Best suited for

• Converters of delicate, compressible foams requiring exact tension control to avoid structural deformation
• Operations needing 100% bubble-free lamination with dual-roller nip sets
• Producers processing jumbo rolls (large diameter and high weight) demanding robust center winding and loop control
• High-volume converters seeking to minimize scrap and maximize yield
• Lines requiring rapid, toolless changeovers between 3" and 6" cores

Why it performs

• Maximized yield and minimized scrap via pneumatic knives and responsive loop tension
• Zero-defect composite quality through stable center winding and dual-roller lamination
• Heavy-duty uptime with operator-friendly knife positioning and fast changeovers

FAQ highlights

• The WSL is an industrial slitter rewinder and laminator designed for high-precision conversion of flexible materials, technical films and specialty foams.
• Supported slitting: pneumatic circular knives (crush-cut) driven by controlled air pressure for burr-free edges, configurable with or without overlap.
• Integrated laminator option: enables lamination, slitting and rewinding in a single workflow to reduce handling and scrap.
• The platform processes tension-sensitive, compressible and high-value materials and is robust enough for jumbo master rolls.
• Warranty: a 5-year warranty applies when a service agreement is in place.

Caractéristiques / spécifications techniques

• Model name: WSL
• Manufacturer / Brand: Crest
• Slitting method: Pneumatic circular knives (high-precision, crush-cut)
• Tension control: Loop-controlled center winding
• Inline surface treatment: Corona Treatment Unit (optional / used in Pass 1)
• Lamination: Optional integrated laminator; dual-roller nip system for air-free lamination
• Working width: Adjustable; quoted capability up to 1650 mm and beyond (modular configurations)
• Maximum master roll diameter: up to ø1200 mm
• Maximum master roll weight: up to 500 kg (center winding)
• Core handling: Fast, interchangeable setups for 3-inch and 6-inch cores (toolless changeovers)
• Platform: Heavy-duty industrial design for high uptime
• Typical materials: Technical foam laminates, PET/PVC backing films, high-tack adhesives, protective films and release liners
• Primary benefits: Deformation-free converting, clean edge quality, single-platform dual-pass workflow, minimized scrap, maximized yield
• Warranty: 5 years (with service agreement)
