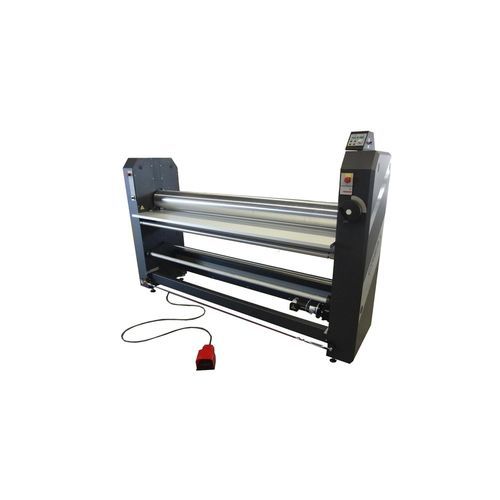

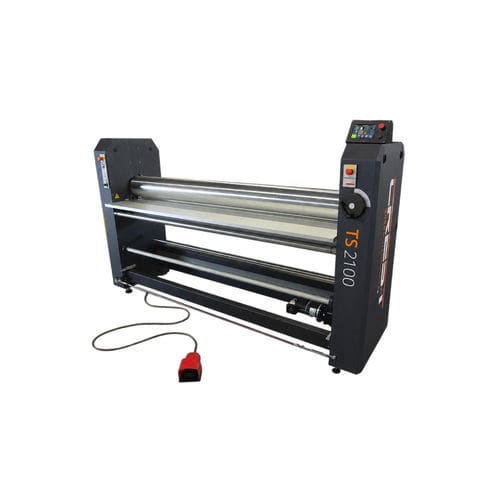

Roll laminator TS-2100

with slitting machineair bubble freehigh quality

Overview
The Crest TS-2100 Liquid Silicone is a heavy-duty face-mounting laminator engineered specifically for applying liquid silicone behind rigid transparent substrates (acrylic and glass). A hard chrome top roller runs against an EPDM rubber bottom roller to deliver even, bubble-free optical bonds. The machine includes an integrated backing-paper feed, roller pressure up to 8 N/mm, working widths up to 2150 mm and operates without compressed air. It is designed for photo labs, fine-art finishers and premium display producers who require flawless face-mount finishes.

Key features

• Hard chrome top roller and EPDM rubber bottom roller for a mark-free bonding surface
• Roller pressure up to 8 N/mm across the full working width
• Maximum operating speed up to 15 m/min
• Integrated backing-paper feed that pulls paper from beneath the table (single paper holder on lockable shaft)
• Removable smooth-aluminium infeed and outfeed tables for clean, controlled feeding
• Machine runs entirely without compressed air; pressure delivered mechanically and adjusted by handwheel or optionally by electrical roller height adjustment with digital presets

Applications

• Acrylic face mounting: spreading liquid silicone into an even, bubble-free layer behind clear acrylic for premium depth, gloss and clarity
• Glass face mounting: bonding prints behind glass for gallery and high-end wall art and display panels
• Wide-format finishing: handling oversized substrates up to 2150 mm in a single, controlled pass

Best suited for

• Photo labs and fine-art finishers mounting prints behind acrylic and glass
• Premium display and wall-art producers where optical bond quality defines the product
• Finishers running oversized formats who need consistent pressure across large widths
• Operations requiring repeatable, bubble-free silicone bonding shift after shift
• Workshops that want an integrated backing-paper feed without a separate stand

Suitable materials

• Clear acrylic panels
• Glass panels
• Liquid silicone bonding medium
• Photographic and fine-art prints
• Display graphics
• Backing paper
• Custom substrates on request

Options and configurable items

• Roller temperature control up to 150 °C with digital read-out
• Additional bottom roller heating
• Rear-side pressure read-out by LED bar
• Output table
• Slitting system
• Length counter
• End-of-roll detection with automatic stop
• 3-inch to 6-inch core adapters
• Electrical roller height adjustment with digital presets

Performance and operational notes
The TS-2100 delivers even pressure across the full working width to avoid roller marks and trapped air, producing repeatable bubble-free optical bonds. The integrated backing-paper feed keeps production clean and continuous. Mechanical roller pressure adjustment is standard; electrical height adjustment with digital presets is available as an option.

Warranty
A 5-year warranty applies provided a signed service agreement is in place.

Frequently asked questions (selected)

• What is a silicone face-mounting laminator? A machine that bonds a printed image to the back of a clear rigid substrate (acrylic or glass) using liquid silicone, engineered to spread silicone cleanly and produce a flawless optical bond.
• Why use a chrome top roller instead of rubber? Liquid silicone requires a rigid, perfectly smooth bonding surface; a rubber top roller can mark or distort the silicone. The chrome top roller running against an EPDM bottom roller spreads the silicone cleanly without trapping air.
• What is the difference between TS-1600 and TS-2100? Both share silicone-optimised engineering (chrome top roller, EPDM bottom roller, up to 8 N/mm pressure, up to 15 m/min speed, integrated backing-paper feed). The difference is working width: TS-1600 up to 1650 mm, TS-2100 up to 2150 mm.
• Does the TS Silicone need compressed air? No. The machine operates entirely without compressed air; roller pressure is delivered mechanically and can be adjusted by handwheel or optionally by electrical roller height adjustment with digital presets.

Technical specifications

• Model family: TS-2100 Liquid Silicone
• Top roller: hard chrome
• Bottom roller: EPDM rubber
• Maximum roller pressure: up to 8 N/mm
• Maximum working width: up to 2150 mm (TS-2100)
• TS-1600 working width reference: up to 1650 mm
• Maximum speed: up to 15 m/min
• Integrated backing-paper feed: single paper holder on lockable shaft, paper pulled from beneath the table
• Installation: operates without compressed air
• Infeed/outfeed: removable smooth-aluminium tables
• Optional features: roller temperature control up to 150 °C, additional bottom roller heating, rear-side pressure LED read-out, output table, slitting system, length counter, end-of-roll detection with automatic stop, 3"–6" core adapters, electrical roller height adjustment with digital presets
• Warranty: 5-year warranty with signed service agreement
