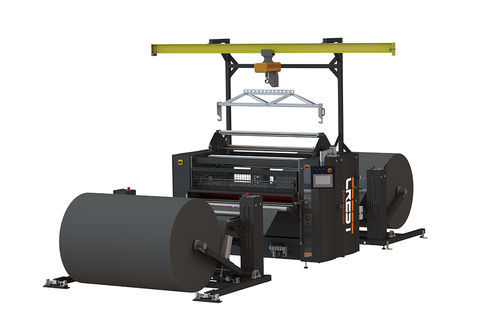

Hot laminating machine EVO-1700

coldroll-to-rollslitter

Overview
The Crest EVO-1700 unwinds jumbo foam rolls, laminates films and adhesives (hot or cold), slits the laminate to customer widths and rewinds finished jumbo rolls in one continuous roll-to-roll pass. The compact line integrates unwind, two lamination stations, pneumatic crush-cut slitting and rewind, and is operable by a single operator from one HMI.

Key features

• One continuous pass: unwind → two lamination stations → slitting → rewind
• Handles foam thicknesses 0.5–120 mm
• Working width up to 1680 mm
• Two independent lamination stations with controlled NIP
• 12 kW shortwave IR pre-heating at the first top roller; dimmable 0–100% via HMI
• Heated top roller (unit 1) to 135 °C for hotmelt applications
• Pneumatic crush-cut slitting knives (standard 5 knives, expandable to 11)
• Four-position film carousel with integrated lift and Autogrip shafts for fast changeovers
• Dancer-controlled web tension for compressible materials (10–200 N)

Applications

• Converters processing jumbo rolls of technical foam
• Polyurethane and other compressible foam substrates
• Hotmelt lamination and thermal bonding processes
• Cold lamination with pressure-sensitive films and adhesives
• Inline slitting to customer widths in the same pass
• High-mix production with frequent film changeovers

Operation and components
The line comprises an unwind with electrically operated friction brake and ±100 mm sideshift, two lamination stations, pneumatic crush-cut slitting unit and rewind. Lamination unit 1 has independently driven top and bottom rollers with electric NIP adjustment and height/pressure readout. Unit 2 is friction-coupled to ≈105% of unit 1 to maintain controlled tension. Both units use ø150 mm silicone rubber rollers (60° Shore) and open to 120 mm. Web tension is dancer-controlled across the line (10–200 N). All production runs on ø76.2 mm (3 in) cores.

Slitting
Slitting is by pneumatic crush-cut knives. Five knives are standard; extendable to eleven. Maximum slitting thickness 20 mm, maximum pass opening 120 mm. Knife positions have ±50 mm lateral fine adjustment by handwheel for precise finished widths.

Changeovers and handling
The four-position film carousel holds three extra Autogrip shafts for quick film swaps. A chain hoist on rail lifts jumbo rolls (max load including hoist 250 kg) to up to 3 m; hoist speeds 8 and 2 m/min. Smart PLC recipe programs recall product settings to reduce setup time and ensure repeatability.

Warranty
A 5-year warranty applies provided a service agreement is in place.

Technical specifications

• Model: EVO-1700
• Working width (max): 1680 mm
• Foam thickness handled: 0.5–120 mm
• Jumbo roll diameter (foam, max): ø1200 mm
• Jumbo roll weight (foam, max): 150 kg
• Film/adhesive width (max): 1680 mm
• Film/adhesive thickness: 0.05–0.5 mm
• Film roll diameter (max): ø300 mm
• Film roll weight (max): 80 kg
• Core diameter: ø76.2 mm (3 in)
• Maximum lamination speed: 15 m/min
• IR heating: 12 kW shortwave IR, dimmable 0–100% via HMI
• Top roller heating (unit 1): up to 135 °C
• Lamination rollers: ø150 mm silicone rubber, 60° Shore; open to 120 mm
• Web tension control: dancer-controlled, 10–200 N
• Slitting type: pneumatic crush-cut knives (5 standard, up to 11)
• Maximum slitting thickness: 20 mm
• Slitting lateral fine adjustment: ±50 mm by handwheel
• Rewind finished roll: up to ø1200 mm and 150 kg on 3 in core
• Unwind: electric friction brake, sideshift ±100 mm, web alignment pin
• Film carousel: 4-position with 3 extra Autogrip shafts
• Hoist: chain hoist on rail, max load 250 kg, lift to 3 m (8 and 2 m/min)
• Control: Smart PLC with recipe programs; single HMI
• Typical materials: technical foam, polyurethane foam, compressible substrates, thermal lamination films, pressure-sensitive films, hotmelt adhesives, protective films, self-adhesive laminates, release liners
• Warranty: 5 years (with service agreement)
