Product overview

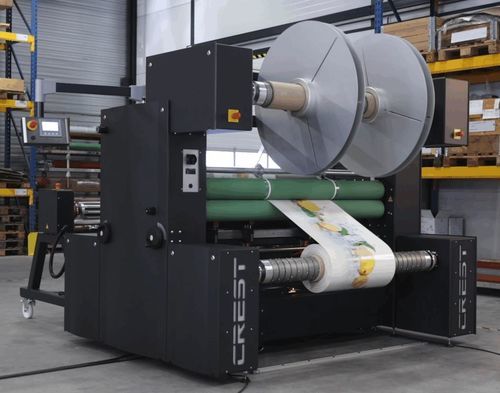

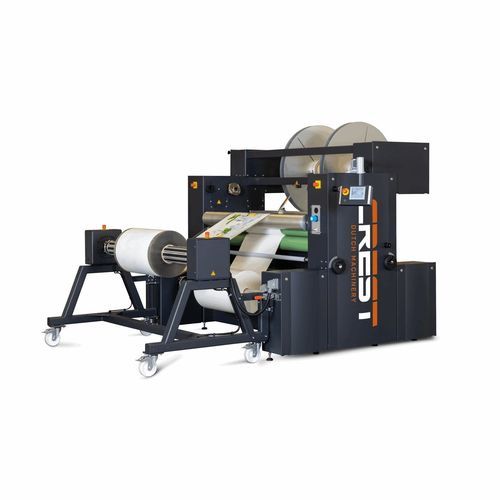

The Crest R2R Laminator Slitter is a heavy‑duty roll-to-roll converting platform that laminates, trims (shear-cut) and rewinds printed rolls in a single continuous workflow. One pass delivers a laminated, trimmed and precision‑rewound finished roll intended for printed wallcoverings, decorative roll media and a wide range of printed roll substrates.

Key summary
Heavy-duty roll-to-roll converting for printed materials. Configurable around web width, material type and production process. Originally engineered for printed PET on self-adhesive PE foam and thin PVC, but configurable for a much broader range of printed roll materials and converting requirements.

Main functions

• Laminate: Apply protective films and functional layers in one workflow using adjustable, heatable laminating rollers suitable for UV-cured, latex, solvent and eco-solvent printed media, self-adhesive PE foam and thin PVC backing.
• Trim: Heavy-duty pneumatic shear-cut trimming for clean edge cutting of thick PVC and other rigid substrates without cracking or deformation.
• Rewind: Precision tension-controlled rewinding with automated web tension regulation (closed-loop), high torque on unwind for rigid substrates and delicate handling on rewind for fragile printed media.

Features & highlights

• Integrated lamination, trimming and rewinding in one continuous pass (reduces handling and alignment errors).
• Automated web tension regulation via closed feedback loop providing a wide, accurately controlled tension range.
• High torque unwind for rigid substrates; controlled low-tension rewind for delicate media.
• Heavy-duty pneumatic shear-cut trim unit capable of cutting thick and tough substrates cleanly.
• Adjustable, heatable laminating rollers compatible with a broad range of adhesives and laminates.
• Configurable platform: web width, lamination setup, trimming configuration, backing application and rewind tension tailored to material and process.
• Industrial-grade construction suitable for continuous production environments.
• PLC + HMI control for operator interface and process control.

Suitable materials

• Printed wallcoverings
• Decorative wallpapers
• Canvas prints
• Banner media
• Floor graphics
• UV-cured prints
• Latex prints
• Solvent & eco-solvent prints
• Foam backing layers
• Self-adhesive vinyl
• Specialty printed roll media

Typical applications

• Print finishing & sticker production (converting printed PVC, PET to self-adhesive PE foam or thin PVC)
• Wide format & decorative roll media production (wallcoverings, canvas, banners, floor graphics)
• Custom configurations for specialty printed roll materials and technical substrates

Frequently asked questions (selected)
What is a roll-to-roll laminator?
The R2R Laminator Slitter is a roll-to-roll converting platform that combines lamination, heavy-duty shear-cut trimming and precision tension-controlled rewinding in a single continuous workflow. It is configurable for a wide range of printed roll materials from rigid industrial substrates to delicate printed media.

What materials can the R2R Laminator process?
Printed PVC and PET on self-adhesive PE foam or thin PVC; UV-cured, latex, solvent and eco-solvent printed media; wallcoverings, decorative wallpapers, canvas, banner media, floor graphics, self-adhesive vinyl and specialty printed roll materials. The platform is regularly configured for substrates and converting setups beyond the standard range.

What makes this machine heavy-duty?
High-torque industrial performance to prevent cracking or deformation of thick and rigid substrates, a heavy-duty pneumatic shear-cut system, and automated tension control across all winding positions to ensure stability under high mechanical forces while maintaining precision for delicate substrates.

How does tension control work on the R2R?
Automated web tension regulation via a closed feedback loop monitors and adjusts tension across unwind, lamination, trimming and rewind stages. The system provides high torque where needed and carefully regulated low tension where delicate handling is required, protecting print and laminate quality.

Warranty
A 5-year warranty applies when a service agreement is in place.

caractéristiques / spécifications techniques

• Platform functions: Lamination + shear-cut trimming + precision-controlled rewinding in one pass
• Control: PLC + HMI
• Tension control: Automated closed-loop web tension regulation across unwind, lamination, trimming and rewind
• Laminating rollers: Adjustable and heatable (supports various adhesive systems and laminates)
• Trimming: Heavy-duty pneumatic shear-cut trim unit for thick/rigid substrates
• Unwind/rewind: High-torque unwind for rigid substrates; precision low-tension rewind for delicate media
• Configurable: Web width, lamination setup, trimming configuration, backing application and rewind tension configurable to material and production process
• Originally engineered for: Printed PET on self-adhesive PE foam and thin PVC
• Industrial suitability: Designed for continuous production and heavy-duty converting
• Warranty: 5 years with service agreement
