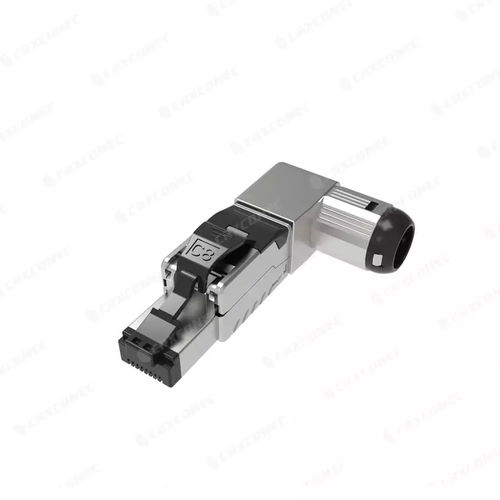

Data connector CC-01-90013
RJ45Ethernetshielded

data connector
data connector
data connector
data connector
Add to favorites
Compare this product


Characteristics

Type
data
Format
RJ45, Ethernet
Electrical characteristics
shielded
Material
nickel, zinc
Other characteristics
shielded, PoE
Product applications
plug, cable, data center, dust
Field
network

Description

Cat.8 STP Shielded Five Angles RJ45 Tool Free Plug Category 8 toolless rj45 plug is designed to terminate with Category 8 ethernet cable and supoort excellent network cabling solution for data center and also suitable for the POE plus (IEEE 802.3at) application. Category 8 field termination plug is smart design for quick and reliable category 8 network cabling solution with the screw-fit boot which protects the category 8 ethernet cable. The IP20 dust cover protects the cat 8 field termination plug free from the dust. The open hinged design simplifies the placement and termination of Cat8 shielded cable, IDC modules can be wired for T568A or T568B wire diagram with a color-coded pass through termination cap. Need to refer an assembly video? Crxconec youtube channel is ready for you! Features Five Angles Selection This toolfree plug provides outstanding network cabling performance and also meet PoE plus (IEEE802.3at) requirement. Fast and dependable installation. Long latch design is very easy to plug in and out for high density application. The screw-fit boot can be fitted with cable outer diameter from 6.0 to 8.5mm which can apply for 22AWG to 26AWG cable. A dust cover will be included as a part of this plug, it provides the protection under IP20 level. How To Terminate Category 8 STP Termination Tool Free Plug Compared with the previous version of field termination plug, there will be 5 cable entrys. Users can decide the angles according to their applicatioon in limited spaces. Material 1. Extractor: PC, UL 94V-2, options color. 2. Housing: Zinc die-Casting with nickel plated. 3. RJ45 plug: 3-1 Housing: PC, UL 94V-2, black color.
