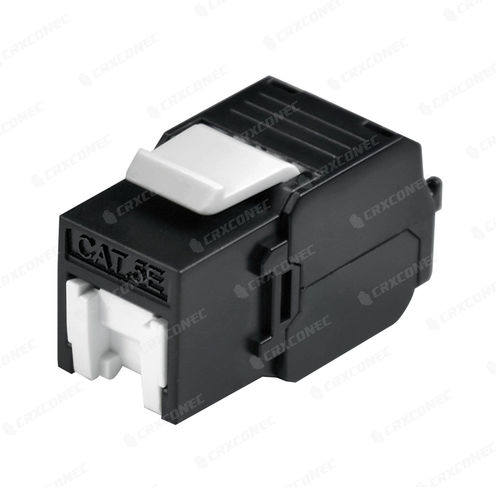

Data connector CC-04-00006

jackRJ45Ethernet

180° CAT 5E UTP Ethernet Keystone Module unshielded network keystone cat 5e with shutter To choose an easy installation and also good looking keystone modular jack, CRXCONEC recommend you to pick our Category 5e UTP 180 degree black color tool free keystone jack with shutter, it is easy to assembly and when you are punching the wiring, it can be easily to fit with the cap, and assembly on the keystone jack. The dust cover smart design can prevent the dust when you are not using your keystone jack, it makes it’s working life longer. The black color with good outer shape, it is a hot sale product in Europe area and American area. Features Suitable for small office networks to huge data centers Fits for 1U 24port keystone panel inset-molding and press-fit assembly Every port has dust-prevent shutter for maintenance cleaning Performance T568A & T568B wiring. Insertion Force : 20N max. (IEC 60603-7-4). Retention Strength : 7.7kg between jack and plug. Operating Temperature : -10〫C to 60〫C. (ISO/IEC 11801, TIA-568.2-D). Life(mating cycles) : 1.Jack : 750 cycles minimum. (ISO/IEC 11801, IEC60603-7-4) 2.IDC : Suitable for 23-26c AWG stranded and solid wire. Material & Structure RJ45 Jack : 1.Housing : ABS+PC, UL 94-V0, galaxy black. 2.Contact Bracket : PC, UL 94-V2, crystal clear. RJ45 Jack Contact : 1.Material : Phosphor bronze with nickel plated. 2.Finish : 50μ“ gold plated on plug contact area. Outer Cap : ABS+PC, UL 94-V0, galaxy black. IDC : 1.Housing : PC, light grey(RAL7035), UL 94-V2. 2.Terminal : Phosphor bronze with tin plated. Inner Cap : PC, UL 94-V2, pearl white. Shutter : ABS+PC, UL 94-V0, pearl white. PCB : FR4, UL 94-V0.
