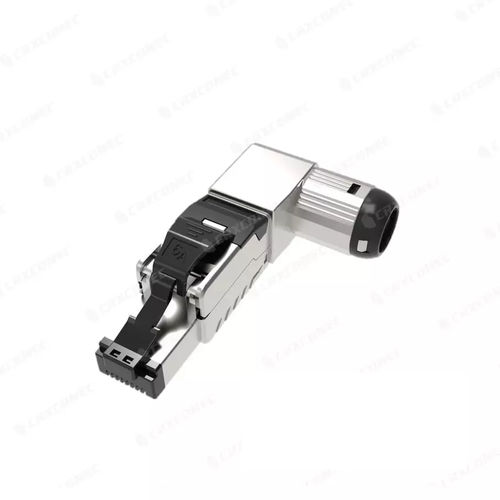

Data connector CC-01-90012

RJ45right-angleshielded

Cat.7/ Cat.6A Angled Toolless RJ45 plug is designed to terminate with a larger ethernet cable and is suitable with the cable outer diameter from 6.0 to 7.5mm and supports excellent network cabling solution for data centers. With a "five-angled direction" design, you can easily manage your ethernet LAN cable to meet your cabling system. It is also suitable for the POE plus (IEEE 802.3at) application and supports 10G Ethernet. The smart design with the screw-fit boot protects the ethernet cable. The IP20 dust cover protects the cat 8 field termination telecommunication connector free from dust while not used in your stock warehouse. The dual-level termination holder cap is marked with highly visible colors for easy T568A or T568B wiring and helps keep conductor pairs separate. Integrated anti-disconnect slide lock prevents accidental disconnections. Field Termination RJ45 Plug Terminate with 23AWG to 26AWG stranded and solid cables. Five angled direction to meet your cabling system environment. Long latch design is easy to plug in and out for high density application. The screw-fit boot can be fitted with cable outer diameter from 6.0 to 7.5mm. A dust cover will be included as a part of this plug, it provides the protection under IP20 level. Feature Get more details on cabling products, the below figures would show its feature.
