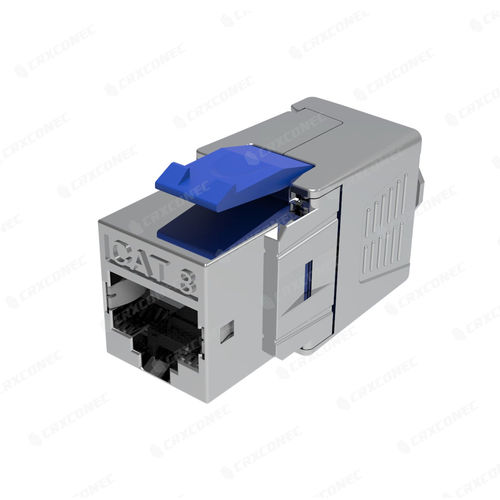

Data connector CC-04-00031

RJ45Ethernetjack

GHMT verified Category 8 keystone jacks support the high frequency up to 2GHz, it is 4 times the bandwidth compared with category 6A. The cat8 network solutions can support short distance links within 30 meters such as servers, switches, and other devices in data centers. Following the ANSI/TIA-568.2-D standard, the new cat8 modular jack designed by the full zinc die-casting housing eliminates the alien crosstalk successfully. The slim impact cat 8 Ethernet telecommunication connector can be applied with 1U 48 port feed-through high-density panel in one rack unit. The cat 8 connectors can work with Cat8 solid cable or category 8 26AWG stranded factory-assembled and tested patch cords in a limited of 30m verified by GHMT. RJ45 Keystone Jack Feature Fits for 1U 24port and 1U 48 port keystone panel. Easy, reliable and stable quality by inset-molding and press-fit assembly process. ISO/IEC 11801-1 Ed.1.0 (2017-11) DIN EN 50173-1(2018-10) Category 8. IEEE 802.3af PoE and IEEE 802.3at PoE+ applications. GHMT CAT.8 channel performance verified. 40Gps High-Speed Keystone Jack Our Cat8 shielded keystone jacks make you enjoy speeds up to 40Gb and 2000MHz. The full die-casting shielding is perfect for applications with EMI on your network, you will not have to worry about disconnections
