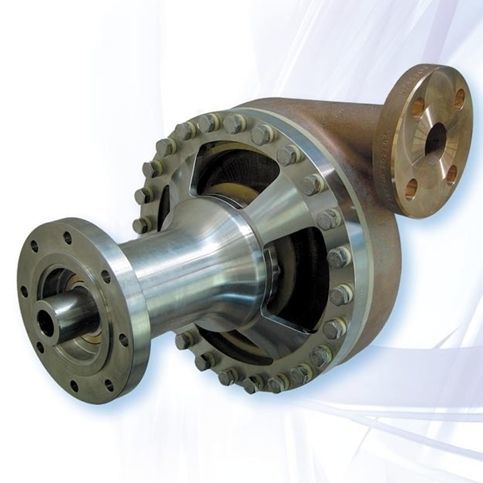

Impeller pump CSHfor liquified gasfor liquified natural gasfor gas
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for gas, for liquified gas, for liquified natural gas
- Operation
- hydraulically-operated
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer
- Material
- steel
- Other characteristics
- single-stage, cryogenic
- Flow
Min.: 10 m³/h
(353.14667 ft³/h)Max.: 40 m³/h
(1,412.58667 ft³/h)- Pressure
Min.: 0 bar
(0 psi)Max.: 50 bar
(725.189 psi)- Power
Min.: 0 kW
(0 hp)Max.: 70 kW
(95.17 hp)- Length
796 mm
(31 in)- Height
352.5 mm
(13.88 in)- Weight
75 kg
(165.35 lb)
Description
Hydraulic driven Pumps that can pass from 10 to 40 m3/h up to 40 bar.
Materials of the cold end are suitable for pumping oxidizing gases such as liquid oxygen (LO2) and liquid nitrous oxide (LN2O).
CSH are typically used for LO2/LN2/LAr road tanker unloading.
