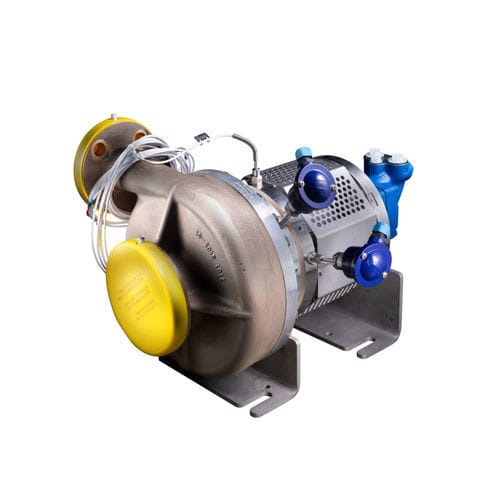

Centrifugal pump MAGSTAR 260/5-Hfor liquified gasfor liquified natural gasfor gas
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for gas, for liquified gas, for liquified natural gas
- Operation
- hydraulically-operated
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer, unloading
- Material
- steel
- Other characteristics
- high-performance, cryogenic
- Flow
Max.: 1,000 l/min
(264.17205 us gal/min)Min.: 0 l/min
(0 us gal/min)- Pressure
Max.: 40 bar
(580.151 psi)Min.: 0 bar
(0 psi)- Head
Max.: 400 m
(1312'04" )Min.: 0 m
(0'00" )- Power
Max.: 48 kW
(65.26 hp)Min.: 0 kW
(0 hp)
Description
MAGSTAR is magnetically coupled hydraulic driven centrifugal pump for LNG and inert gases semi-trailer unloading application.
Reaching a flow rate as high as 1.000 l/min, the MAGSTAR allows perfect operations with cryogenic temperatures at high pressure.
The magnetic coupling offers a non-contact transfer of torque between the motor and the pump shafts.
Without mechanical seal or wearing parts, The MAGSTAR centrifugal pump is a guarantee for optimized Total Cost of Ownership all along the pump lifetime.
