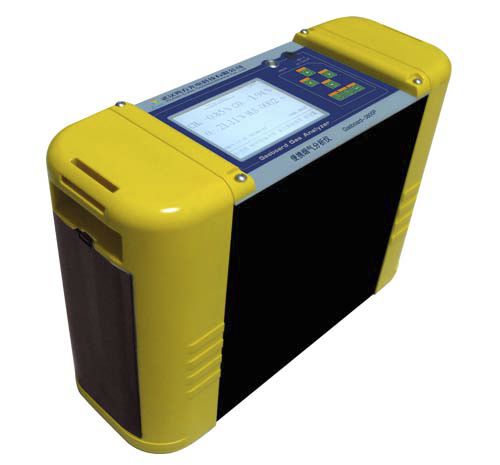

Flue gas analyzer Gasboard 3000P
COsulfurmonitoring

flue gas analyzer
flue gas analyzer
flue gas analyzer
Add to favorites
Compare this product


Characteristics

Measured entity
flue gas, CO, sulfur
Application domain
monitoring, laboratory
Measured value
toxicity, temperature, pressure, flow
Configuration
portable, in-line
Technology
NDIR, electrochemical
Other characteristics
continuous, real-time, calibration, sampling, high-performance, simultaneous, with data logger

Description

It is economical portable type which mainly based on electrochemical sensors to measure the volume concentration of CO,CO2 ,O2 ,SO2 ,NO2 ,NO and HC in flue gas and to figure out excess air coefficient. This product has high precision, small volume, it is convenient to carry, simple to operate and it is extensively applied in steel, chemical, energy conservation monitoring, energy efficiency evaluation and other fields. Features Simultaneous measurement of O2, SO2, CO2, CO low, CO high, HC, NO, NO2 (optional), optional temperature, pressure, flow. NDIR-technology to measure CO high ,CO2 and HC. Maximum measure six gases in one gas analyzer. Auto zero function. Built-in pump. Calculation of Lambda and combustion efficiency. LCD (320 * 240) display. RS232 output. Weight: 6KG. Specifications Technology - CO high/CO2/HC (NDIR) CO low/SO2/NO/O2/NO2(ECD) Range - SO2:0-2000ppm;NO:0-2000ppm;NO2:0-200ppm;CO low:0-4000ppm;CO2:0-25%;O2:0-25%;CO high: 0-10%(optional);HC:0-9999ppm (optional); (note: measurement range can be customized.) Measurement - SO2,NO,NO2,CO low,CO2,O2,HC(optional),CO high(optional) Resolution - CO2/CO high/O2:0.01% SO2/NO/NO2/CO low/HC:1ppm Gas flow - 0.7-1.2 L/min Precision - CO high/CO2/Hc(NDIR)≤1% Fs SO2/NO/NO2/O2/CO low (ECD)≤2%FS Inlet pressure - 2kPa-50kPa Power supply - built-in rechargeable lithium battery Sampling gas condition - no dust, no water, no tar Response time (T90) - <10s (NDIR)
