Gas analysis system GasTDL-3110

laser processdatasample

Product overview

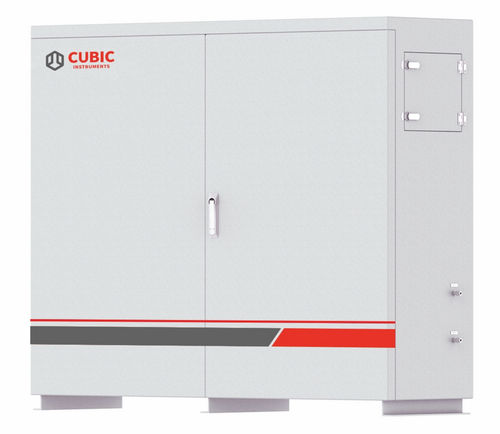

GasTDL-3110 is an extractive TDLAS laser gas analysis system for continuous, real-time measurement of a single target gas. Configurable for H2S, O2, CO, CO2 or CH4, the cross‑beam TDLAS design ensures high selectivity and measurement accuracy with minimal interference from background gases.

Design & Operation
The system uses an extractive sampling approach integrating a sampling probe, pretreatment unit, control unit and gas analysis unit. Built-in automatic probe purging, condensate drainage and multi-stage filtration enable stable continuous operation in harsh process environments including high temperature, high humidity, high dust loading, high flow and corrosive atmospheres.

Applications
Designed for process optimization, energy reduction and safety monitoring in industries such as oil & gas, chemical processing and metallurgy. Suitable for continuous process gas and syngas monitoring.

Segment / Division
Segment: Process Gas Analyzer
Division: Syngas Analyzer

Features

• TDLAS cross‑beam technology for highly selective single‑gas measurement with low cross‑interference.
• Certified explosion protection: Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db for hazardous gas and dust areas.
• Automatic sampling, probe purging and condensate drainage for reliable long‑term unattended operation.
• Multi‑stage filtration and robust sampling design for operation in high dust, high humidity and corrosive gas conditions.
• Remote monitoring support (RS‑485/RS‑232) and multiple outputs for integration with process control systems.

Specifications

• Measuring components: H2S, O2, CO, CO2, CH4
• Measuring principle: TDLAS (cross‑beam)
• Measuring range: H2S: 0~100 ppm, 0~5000 ppm; O2: 0~5% VOL (100% VOL configurable); CO: 0~100% VOL; CO2: 0~100% VOL; CH4: 0~20% VOL
• Accuracy: ≤±1% F.S.
• Repeatability: ≤±1%
• Span drift: ≤±1% F.S.
• Resolution: 0.01% VOL
• Explosion‑proof rating: Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db
• Ambient temperature: -20~60℃
• Operating power: 220V AC, 50Hz
• Operating gas: Industrial nitrogen 0.3~0.8 MPa
• Communication interface: RS‑485, RS‑232
• Output mode: 2 channels 4~20 mA; 3 relay outputs
