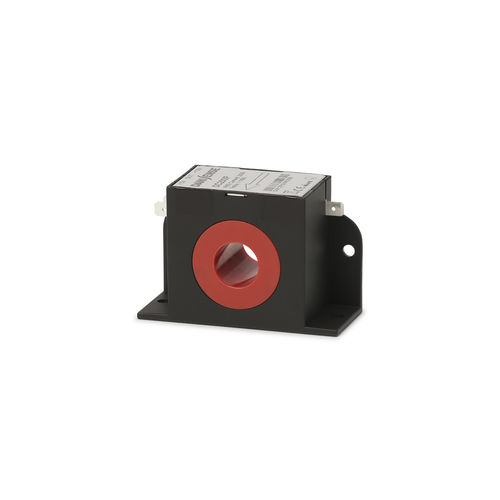

Fluxgate current transducer DC200IF

fixedDCAC

• Linearity error maximum 6 ppm • Offset maximum 5ppm—equivalent to 1.5mA • Fluxgate, closed loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for enhanced accuracy and sta-bility • Industry standard 6.3 x 0.8mm faston connection • Cost focused high performance transducer • DC and AC current metering with +/-0.1% absolute accuracy up to 5kHz Highly stabilized and precise fluxgate technology based current transducer, re-engineered for cost sensitive, non-intrusive, isolated DC and AC current measurement applications up to 300A Applications • Gradient amplifiers for MRI devices • Precision power supplies, drives • Batteriy testing and evaluation systems • Variable speed motor drives
