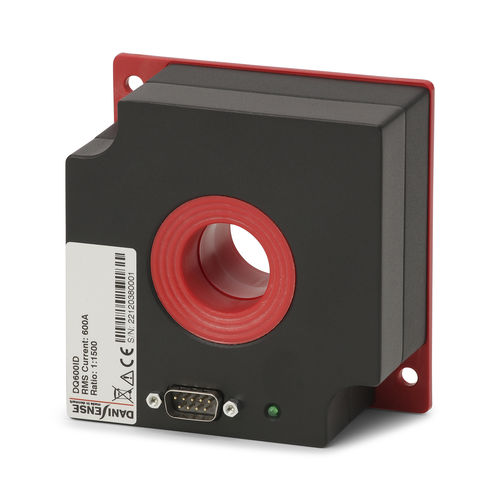

Fluxgate current transducer DQ600ID-P1300clampDCAC
Add to favorites
Compare this product
Characteristics
- Technology
- fluxgate
- Mounting
- clamp
- Electrical characteristics
- AC, DC
- Other characteristics
- high-accuracy, through-hole, monitoring, solid-core
- Output
- current output
- Primary current
600 A, 900 A
Description
• Linearity error maximum 1 ppm
• Single Supply 15V
• Industry standard DSUB 9 pin connection
• Green diode for normal operation indication
• Full aluminum body for superior EMI shielding and extended operating temperature range
• Large aperture 27.6mm for cables and bus bars
Ultra-stable, high precision (ppm class) fluxgate technology DS Series current
transducer for non-intrusive, isolated DC and AC current measurement up to 1300A
Applications:
• MPS for particles accelerators
• Gradient amplifiers for MRI devices
• Stable power supplies
• Precision drives
• Batteries testing and evaluation systems
• Power measurement and power analysis
• Current calibration purposes
Catalogs
DQ600ID-P1300
7 Pages
