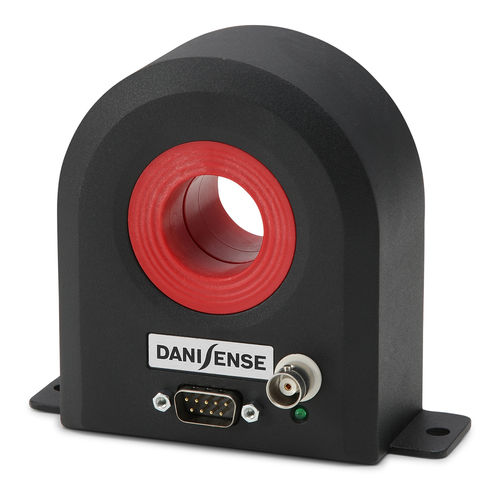

Fluxgate current transducer DS400UB-10V

fixedDCAC

• 10 V output at 400 A through BNC connector • 027.6 mm aperture • 75 ppm total accuracy • 10 ppm linearity • 15 ppm offset • Status signal and LED High precision DC current transducer (DCCT) measuring up to 440 A currents and continuously measuring 400 A currents with a linearity error less than 10 ppm. Based on the ultra stable Danisense closed loop flux gate technology, the DS400UB-10V has very low offset and ultra low drift. With an integrated voltage output module (VOM) outputting 10V at 400 A, the DS400UB-10V makes current measuring easy. It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged, full aluminium design for durability. Applications • Electric vehicle (EV) test bench • Power measurement and power analysis • Particles accelerators • MRI devices and medical scanners • Batteriy testing and evaluation systems • Current calibration purposes • Stable power supplies • Precision current sensing
