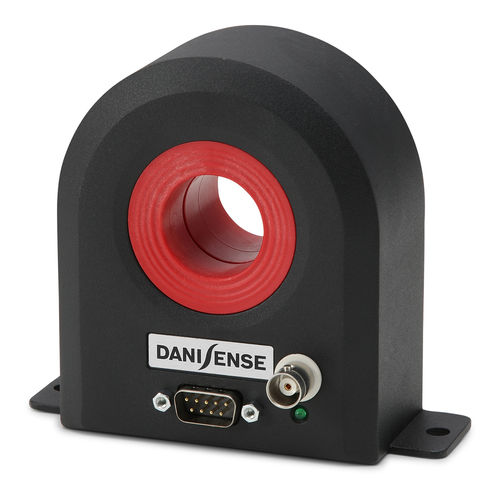

Fluxgate current transducer DS200UB-10V

fixedDCAC

• 140 A rms nominal current • 10 V output at 200 A through BNC connector • 027.6 mm aperture • 82 ppm total accuracy • 10 ppm linearity • 22 ppm offset • Status signal and LED High precision DC current transducer (DCCT) measuring up to 220 A currents and continuously measuring 200 A currents with a linearity error less than 10 ppm. Based on the ultra stable Danisense closed loop fluxgate technology, the DS200UB-10V has very low offset and ultra low drift. With an integrated voltage output module (VOM) outputting 10V at 200 A, the DS200UB-10V makes current measuring easy. It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged, full aluminium design for durability Applications • Electric vehicle (EV) test bench • Power measurement and power analysis • Particles accelerators • MRI devices and medical scanners • Batteriy testing and evaluation systems • Current calibration purposes • Stable power supplies • Precision current sensing
