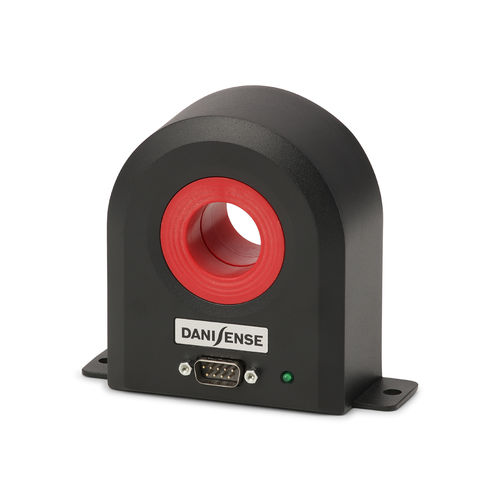

Fluxgate current transducer DS400ID

fixedDCAC

• 2000:1 primary/secondary current ratio • Current output through D-sub-9 connector • 027.6 mm aperture • 10 ppm total accuracy • 1 ppm linearity • 9 ppm offset • Status signal and LED High precision DC current transducer (DCCT) measuring up to 600 A currents and continuously measuring 600 A currents with a linearity error less than 1 ppm. Based on the ultra stable Danisense closed loop flux gate technology, the DS400ID has very low offset and ultra low drift. It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged design for durability. Applications • Electric vehicle (EV) test bench • Power measurement and power analysis • Particles accelerators • MRI devices and medical scanners • Battery testing and evaluation systems • Current calibration purposes • Stable power supplies • Precision current sensing
