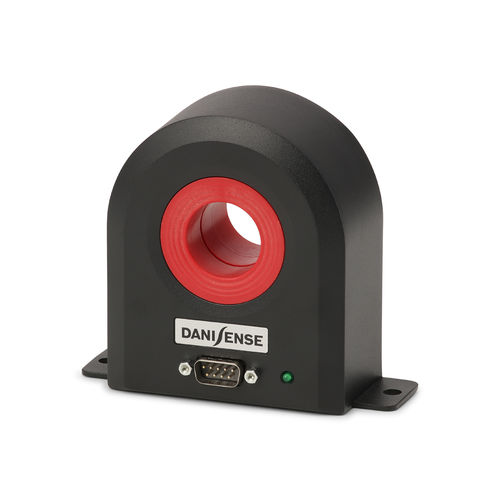

Fluxgate current transducer DS200ID

fixedDCAC

• 500:1 primary/secondary current ratio • Current output through D-sub-9 connector • 027.6 mm aperture • 16 ppm total accuracy • 1 ppm linearity • 15 ppm ofset • 1 MHz bandwidth (#1 dB) • Status signal and LED High precision DC current transducer (DCCT) measuring up to 370 A currents and continuously measuring 300 A currents with a linearity error less than 1 ppm. Based on the ultra stable Danisense closed loop fluxgate technology, the DS200ID has very low offset and ultra low drift. It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged design for durability Applications • Electric vehicle (EV) test bench • Power measurement and power analysis • Particles accelerators • MRI devices and medical scanners • Batteriy testing and evaluation systems • Current calibration purposes • Stable power supplies • Precision current sensing
