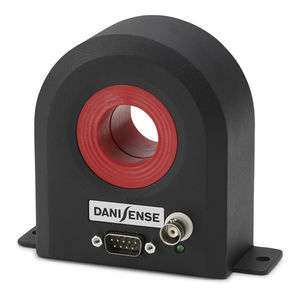

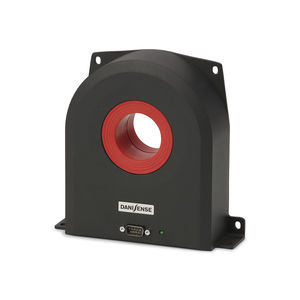

Fluxgate current transducer DL2000UB-1V

fixedDCAC

• 1.5 V output at 3000 A with BNC connector • 68 mm aperture • 106 ppm total accuracy • 6 ppm offset • Status signal and LED High precision DC current transducer (DCCT) measuring up to 3000 A currents and continuously measuring 3000 A currents with a linearity error less than 80 ppm. Based on the ultra stable Danisense closed loop fluxgate technology, the DL2000UB-1V has very low offset and ultra low drift. With an integrated high precision burden resistor outputting 1.5 V at 3000 A, the DL2000UB-1V makes high current measuring easy. It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged, full aluminium design for durability. Applications • Electric vehicle (EV) test bench • Power measurement and power analysis • Particles accelerators • MRI devices and medical scanners • Batteriy testing and evaluation systems • Current calibration purposes • Stable power supplies • Precision current sensing
