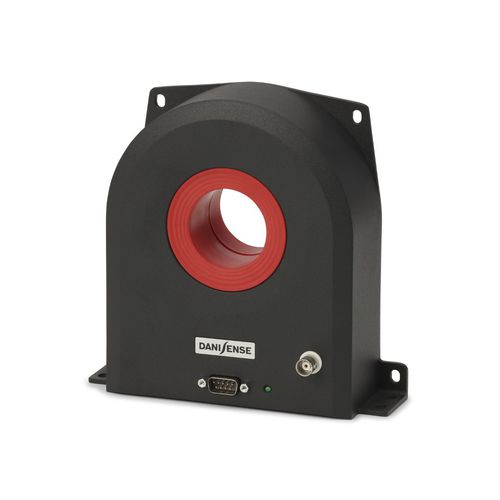

Fluxgate current transducer DM1200UB-1V

fixedDCAC

• Ø45mm aperture enabling large isolated cables and the possibility to measure leakage current at high precision • 15 ppm linearity • 10 ppm offset • 1V output • Fluxgate, closed loop compensated technology with crystal driven excitation frequency for increased stability • Industry standard DSUB 9 pin connection • Full aluminum body for superior EMI shielding and extended operating temperature range Ultra-stable, high precision (ppm class) fluxgate technology DM Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1800A. Applications • Power measurement and power analysis • Stable power supplies • MPS for particles accelerators • Gradient amplifiers for MRI devices • Precision drives • Batteriy testing and evaluation systems • Current calibration purposes
