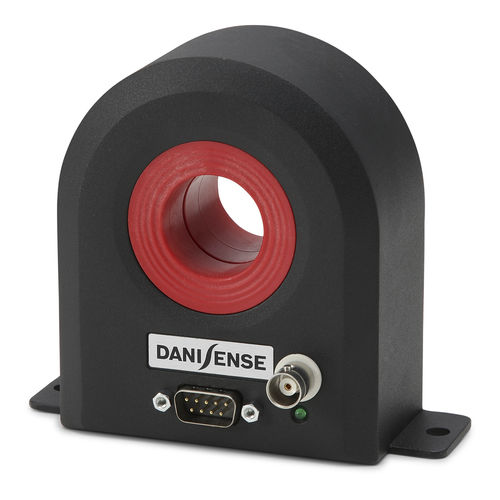

Fluxgate current transducer DS1000UB-10V

fixedDCAC

• Linearity error maximum ±35 ppm • 10V BNC output connection • Fluxgate, closed loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for best in class accuracy and stability • Industry standard DSUB 9 pin connection • Green diode for normal operation indication • Full aluminum body for superior EMI shielding and extended operating temperature range • Large aperture Ø27.6mm for cables and bus bars Ultra-stable, high precision (ppm class) fluxgate technology DS Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1100A. Applications • MPS for particles accelerators • Gradient amplifiers for MRI devices • Stable power supplies • Precision drives • Batteriy testing and evaluation systems • Power measurement and power analysis • Current calibration purposes
