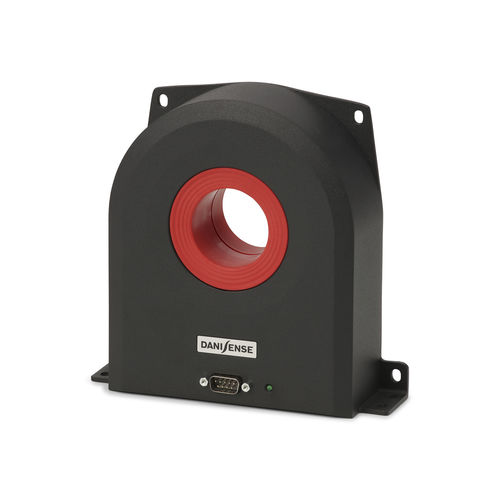

Fluxgate current transducer DM1200ID-CD3000

fixedDCAC

• Ø45mm aperture enabling large isolated cables and the possibility to measure leakage current at high precision. • 3 ppm linearity, 12 ppm offset • Current output • Fluxgate, closed loop compensated technology with crystal driven excitation frequency for increased stability • Access to 3000 turns calibration winding in DSUB • Possibility to perform 1500A calibration with 500mA source through calibration winding of 3000 turns • Not suitable for frequencies above 15kHz due to calibration winding Ultra-stable, high precision (ppm class) fluxgate technology DM Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1500A. Applications • Stable power supplies • MPS for particles accelerators • Batteries testing and evaluation systems • Current calibration—Metrology
