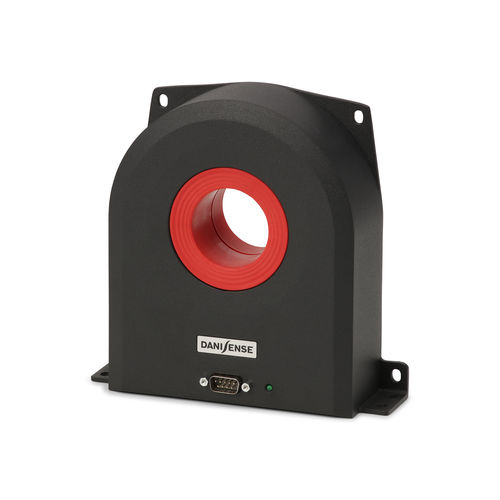

Fluxgate current transducer DM1200ID

fixedDCAC

• 1500:1 primary/secondary current ratio • Current output through D-sub-9 connector • 045 mm aperture • 6 ppm total accuracy • 1 ppm linearity • 5 ppm offset • Status signal and LED High precision DC current transducer (DCCT) measuring up to 1800 A currents and continuously measuring 1500 A currents with a linearity error less than 1 ppm. Based on the ultra stable Danisense closed loop flux gate technology, the DM1200ID has very low offset and ultra low drift. With a full aluminium housing it provides high resolution for precise monitoring, reliable and consistent performance, and a rugged design for durability. Applications • Electric vehicle (EV) test bench • Power measurement and power analysis • Particles accelerators • Batteriy testing and evaluation systems • Current calibration purposes • Stable power supplies • Precision current sensing
