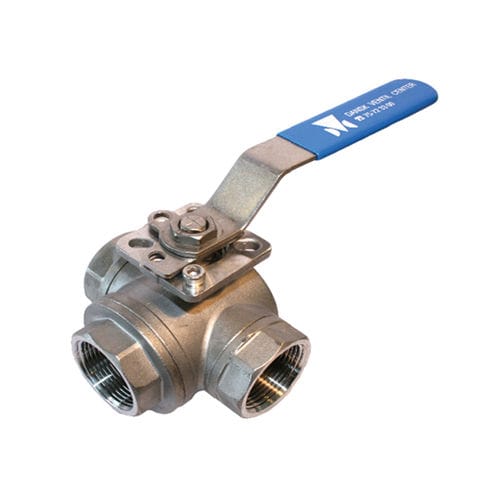

Ball valve 1612 - TleverfemaleT
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Body
- female, T, stainless steel
- Number of channels
- 3-way
- Other characteristics
- ISO, ATEX
- DN
Max.: 2 in
Min.: 0.25 in
- Pressure
55 bar, 69 bar
(797.7 psi, 1,000.8 psi)- Flow rate
Max.: 72 m³/h
(2,542.66 ft³/h)Min.: 5 m³/h
(176.57 ft³/h)
Description
3-way ball valve with ISO mounting top for mounting of actuator without the use of brackets. 4 seat rings to prevent any bypass behind the ball.
ATEX - FDA - EU1935
