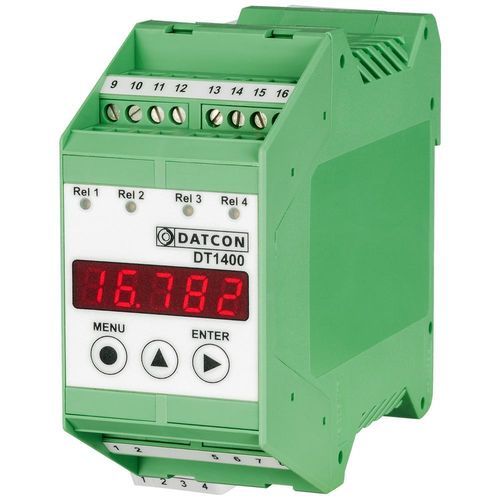

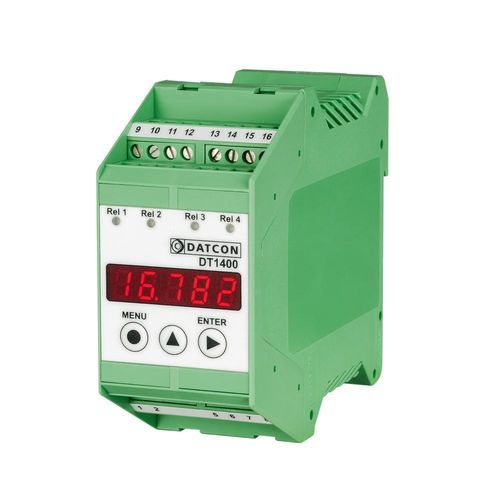

Process indicator DT1400

with LED display5-digitDIN rail

Product features

• 0-20 mA / 4-20 mA / 0-10 V / 2-10 V / 0-5 V inputs
• 2 / 4 × limit-relay outputs
• Process indicator function
• 5 digit LED display, 7.6 mm character height
• Menu based configuration
• 0-20 mA / 4-20 mA isolated output
• Transmitter supply
• 24 VDC ±10% power supply or 230 V AC/DC ±10% mains
• TS-35 rail mounting, 45 mm width

Product description
The DT1400 … Limit switches compare the 0-20 mA / 4-20 mA / 0-10 V / 2-10 V / 0-5 V output signal with the set values.
When the output signal exceed one of the set values the instrument activates the corresponding SPDT relay contact.
The DT1400 … Limit switch is also a process indicator and enable linear process variable to be displayed in engineering unit on its 5 digit LED display.
The instrument is available with the following output options (2 limit-relays are standard, beyond that only one option at the same time):

• +2 normally open relay contacts (SPST) for limit switching or for simple control tasks. (In this case 4 limit-relay contacts are in the DT1400.)
• 0-20 mA / 4-20 mA galvanic isolated, scalable, active or passive current output.
• 15 VDC, 30 mA, galvanic isolated power supply for two wire 4-20 mA transmitter.

The functional parameters can be set by push-buttons on the front panel of the device, through a simple menu system: input selection, averaging of input signals, scaling, display frequency, limit values, limit operating modes, histeresis, scaling the analogue output, etc. The settings are protected by a two-level password against unauthorised manipulation.
The DT1400 … has two power supply versions:

• 24 VDC ±10% (DT1400 …)
• 230 V AC/DC ±10% (DT1400 … PS).

Technical specification
Safety data: The connection terminals of the supply voltages are isolated from each other, the isolation is in compliance with the standard
EN 61010-1, taking into consideration the following:

• Pollution level: 2
• Measurement category: II

Input parameters:

• Input signal: DC current or DC voltage
• Measurement range: 0-20 mA / 4-20 mA / 0-10 V / 2-10 V / 0-5 V
• Overrange: ±50 mA (current input), ±200 V (voltage input)
• Sampling: 12 measurement / sec.
• Number of averaged samples: 1 / 2 / 4 / 8 / 16 / 32 / 64 (selectable)
• Error of displayed value : < 0.02% (Ta = 23 °C ±2 °C)
• Temperature coefficient: ±40 ppm / °C (max.)

Output parameters:
Analogue output (optional):

• Output type: 1 active or passive DC current (scalable)
• Range: 0-20 mA / 4-20 mA
• Burden: 500 ohm (max.)
• Error: < 0.03% @ Ta = 23 °C ±2 °C

Limit outputs:

• Outputs: 2 NO SPST relays (standard), + 2 NO SPST relays (optional)
• Contact rating: 30 VDC, 3 ADC / 240 VAC, 3 AAC

Transmitter supply (optional):

• Transmitter supply: 15 VDC, 30 mA

Display:

• Display: 5 digit (+values), 4 digit (-values), negative sign, decimal point, 4 limit output LED
• Display unit: 5 digit LED, 7.6 mm character height
• Display refresh rate: 0.1 / 0.3 / 0.5 / 1.0 / 1.5 / 2.0 sec. (adjustable)

Manual controls:

• Manual controls: 3 membrane push-buttons on the front cover

Power supply:

• Power supply: 24 VDC ±10% (DT1400 ...); 230 V AC/DC ±10% (DT1400 ... PS)
• Consumption: 3.5 W / 3 VA

Ambient conditions:

• Operating temperature range: 0-60 °C (-20 - +60 °C for customer request)
• Relative humidity: 90% (max., non-condensing)
• Place of installation: cabinet
• Mounting position: vertical (horizontal rail position)

Electromagnetic compatibility (EMC) accordance with the standard EN 61326

• Immunity: industrial area
• Noise emission: Group 1, Class B

General data:

• Housing: terminal assembly box, rail mounting on TS-35 rail, material: polyamide PA6.6
• Connection: screw terminal
• Connection cable: 0.25-2.5 mm2
• Dimensions: 45 × 99 × 115 mm (width × height × depth)
• Weight: 0.2 kg
• Protection: IP20

Detailed information see in operating instructions. The Manufacturer maintans the right to change the technical data!
