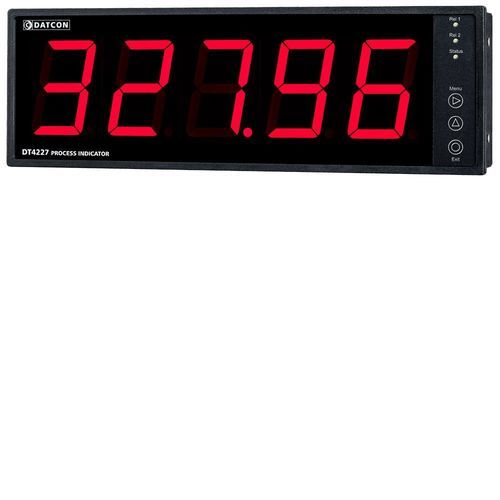

Process indicator DT4227 Pt

temperatureresistanceLED

Product features

• Pt100 / Pt500 / Pt1000 temperature sensor, 0-500 ohm / 0-5 kohm resistor / potentiometer inputs
• 2 / 3 / 4-wire measurement
• large, 5-digit LED display 57 mm character height
• adjustable brightness
• easy configuration via front panel pushbuttons or via USB interface
• 0.1 °C resolution
• dual limit relay outputs
• 24 VDC ± 10% or 230 V AC/DC ± 10% power supply options
• 288 × 96 mm panel meter with
• IP52 front IP20 back

Product description
The DT4227 Ptx Process Indicator measures and displays the temperature detected by a Pt100 / Pt500 / Pt1000 temperature sensor connected to its input. It also measures and displays the value of a connected resistor or the wiper position of a potentiometer.
The sensor or resistor / potentiometer can be connected to the input using a 2-, 3-, or 4-wire configuration. In the case of 3 / 4-wire connection, the connection wires resistance does not affect the measurement. In resistance / potentiometer measurement mode two ranges are available: 0–500 ohm / 0–5 kohm.
The device features a 5-digit LED display with a character height of 57 mm, ensuring excellent readability even from a long distance. The display brightness is adjustable.
Operating parameters can be configured via a simple menu system using the front panel pushbuttons, or via a USB interface using a single-screen (free) configuration software. Configurable parameters include: input signal range selection, input signal averaging, scaling, display refresh rate, display brightness, limit values, limit operating modes, etc.
The device is equipped with dual, freely programmable limit relay outputs (SPST), with multiple limit operating modes available for selection.
The device is available with two power supply options:

• DT4227 Ptx type: 24 VDC ± 10%
• DT4227 Ptx PS type: 230 V AC/DC ± 10%.

Technical specifications
Safety data: The input, output connection terminals and the power supply connection terminal of the device are separated from
each other, the separation complies with the requirements of MSZ EN 61010-1, taking into account the following.

• Pollution degree 2
• Measurement category II

Input characteristics:

• Input signal: Pt100 / Pt500 / Pt1000 temperature sensor / resistor/ potentiometer
• Measuring range: -200 – +800 °C / 0–5 kohm
• Connection: 2 / 3 / 4 wire
• Measuring time: 12 / 60 / 100 / 200 / 300 / 500 ms
• Accuracy:
• Temperature dependence: ± 25 ppm / °C (max.)

Relay outputs:

• Outputs: 2 x SPST NO relay contacts
• Contact rating: 30 VDC, 3 ADC / 240 VAC, 3 AAC

Display:

• Display range: 5 digit (+ values), 4 digit (- values), sign, decimal point
• Display: 7 segment LED, 57 mm character height
• Color: red
• Indicator LED’s: 2 pc. relay status
• Color: yellow
• Display refreshing time: 0,01 / 0,1 / 0,3 / 0,5 / 1,0 / 2,0 sec

Manual controls:

• Manual controls: 3 pcs. front panel push button

Configuration port:

• Connector: USB-mini
• Standard: USB 3.0 (recommended)

Power supply:

• Supply voltage: 24 VDC ± 10% (DT4227 Ptxx); 230 V AC/DC ± 10% (DT4227 Ptxx PS)
• Consumption: 3 W (DT4227 Ptxx); 5 VA / 3,5 W (DT4227 Ptxx PS)

Ambient conditions:

• Operating temperature range: 0 – +60 °C (on request: -20 – +60 °C)
• Storage temperature range: -25 – +70 °C
• Relative humidity: 90% (max., non-condensing)
• Place of installation: cabinet

Electromagnetic compatibility (EMC) accordance with the standard EN 61326-1:

• Immunity: industrial area
• Noise emission: Group 1, Class B

General data:

• Housing: panel instrument
• Connection: plug-in screw terminal
• Connection cable: 2.5 mm2 (max.)
• Dimensions: 288 × 96 × 78 mm (width × height × depth)
• Weight: 0.7 kg
• Protection: IP52 front, IP20 back

Detailed information is in operating instructions. The Manufacturer maintains the right to change the technical data!
