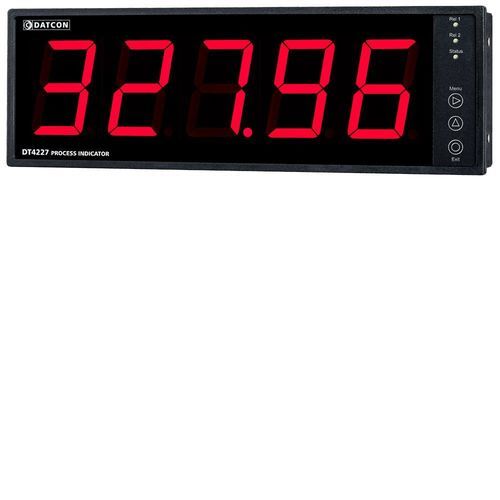

Process indicator DT4227 RS4

LED7-segment5-digit

Product features

• RS485 interface
• Modbus RTU slave protocol
• large, 5-digit LED display, 57 mm character height
• adjustable brightness
• easy setting via front-panel pushbuttons or via USB interface
• dual relay output
• 24 VDC ± 10% or 230 V AC/DC ± 10% powered versions
• 288 × 96 mm panel instrument,
• IP52 front IP20 back

Product description
The DT4227 RS4.. Process Indicator is designed to display signed numerical values and limited-character messages transmitted via communication lines. The device features a 5-digit LED display with a character height of 57 mm, ensuring excellent readability even from a long distance.
In numerical display mode, any number within the range of -9999 to 99999 can be displayed; leading zeros can be blanked, and the entire display can be set to flash.
In message display mode, the device can display text (such as Start, Stop, End, Error, etc.) using the character set supported by the 7-segment display. In this mode, characters can be flashed either individually or simultaneously.
Several displays can be operated on the RS485 communication bus.
The communication protocol is Modbus RTU slave.
The device has dual relay outputs (SPST), which are freely programmable, and several limit modes can be selected.
The communication parameters can be set, the maximum communication speed is 9600 Baud.
The operating parameters can be set via a simple menu system using front-panel pushbuttons or via a USB interface with a single-screen (free) configuration program: display brightness, leading zero suppression, Modbus parameters, etc. The settings are protected by a two-level password against unauthorized access.
The device is available with two power supply options:

• DT4227 RS4 type 24 VDC ± 10% or
• DT4227 RS4 PS type 230 V AC/DC ± 10%.

Technical specifications
Safety data: The input, output connection terminals and the power supply connection terminal of the device are separated
from each other, the separation complies with the requirements of EN 61010-1, taking into account the following.

• Pollution degree: 2
• Measurement category: II

Input characteristics:
Communication interface:

• Interface type: RS485
• Communication protocol: Modbus RTU slave
• Communication speed: 300 / 600 / 1200 / 2400 / 4800 / 9600 Baud
• Parity: even / odd / none
• Number of stop bits: 1

Relay outputs:

• Outputs: 2 x SPST NO relay contacts
• Contact rating: 30 VDC, 3 ADC / 240 VAC, 3 AAC

Display:

• Display range: 5 digit (+ values), 4 digit (- values), sign, decimal point
• Display: 7 segment LED, 57 mm character height
• Color: red
• Indicator LED’s: 2 pc. relay status 1 pc. communication status
• Color: yellow

Manual controls:

• Manual controls: 3 pcs. front panel push button

Configuration port:

• Connector: USB-mini
• Standard: USB 3.0 (recommended)

Power supply:

• Supply voltage: 24 VDC ± 10% (DT4227 RS4 ...); 230 V AC/DC ± 10% (DT4227 RS4 ... PS)
• Consumption: 3.5 W / 3 VA

Ambient conditions:

• Operating temperature range: 0 – +60 °C (on request: -20 – +60 °C)
• Storage temperature range: -25 – +70 °C
• Relative humidity: 90% (max., non-condensing)
• Place of installation: cabinet

Electromagnetic compatibility (EMC) accordance with the standard EN 61326-1:

• Immunity: industrial area
• Noise emission: Group 1, Class B

General data:

• Housing: panel instrument
• Connection: plug-in screw terminal
• Connection cable: 2.5 mm2 (max.)
• Dimensions: 288 × 96 × 78 mm (width × height × depth)
• Weight: 0.7 kg
• Protection:: IP52 front, IP20 back

Detailed information is in operating instructions. The Manufacturer maintains the right to change the technical data!
