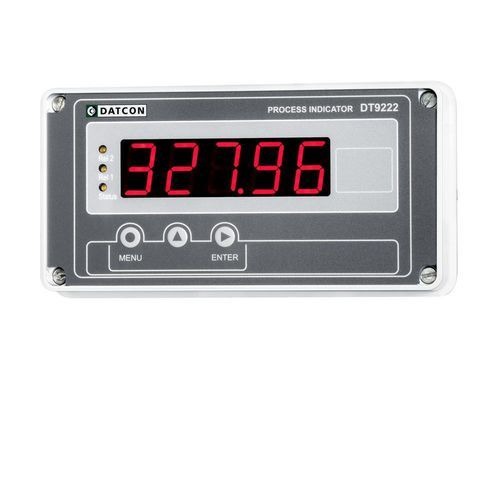

Process indicator DT9222

with LED display5-digitwall-mounted

Product features

• 0-20 mA / 4-20 mA / 0-10 V / 2-10 V / 0-5 V inputs
• 5 digit LED display, 20.3 mm character height
• 0.03% accuracy
• 0-20 mA / 4-20 mA, galvanic isolated output (optional)
• 2 limit relay output (optional)
• RS232 / RS485 communication, MODBUS RTU protocol (optional)
• 24 VDC ±10% or 230 V AC/DC ±10% power supply
• IP65 protection
• readable even at a 10 m distance

Product description
The DT9222 … Process Indicator enable linear process variables (0-20 mA / 4-20 mA / 0-10 V / 2-10 V / 0-5 V) to be displayed in engineering units on the control panel. Any optional display range can be assigned to the input signal range. Large 5 digit, 20.3 mm character height LED display with adjustable brightness make process value easily visible at a 10 m distance.
The instrument is available with the following output options:

• 2 normally open relay contacts (SPST) for limit switching or for simple control tasks
• 0-20 mA / 4-20 mA galvanic isolated scalable current output *
• RS232 / RS485 galvanic isolated communication output with MODBUS RTU slave protocol *
• transmitter supply galvanic isolated 15 VDC 20 mA*

(* either analogue or communication or transmitter supply option can be implemented at the same time)
The functional parameters can be set by push-buttons on the front panel of the device, through a simple menu system: input selection, averaging of input signals, scaling, display frequency, limit values, limit operating modes, scaling the analogue output, etc. The settings are protected by a two-level password against unauthorised manipulation.
The instruments has two power supply versions: 24 VDC ±10% (DT9222 …) or 230 V AC/DC ±10% (DT9222 … PS).
The DT9222 … is housed in a moulded polycarbonate case which is dust-tight and houseproof to IP65 to allow for installation in the field or on the control panel.

Technical specification
Safety data: The connection terminals of the supply voltages are isolated from each other, the isolation is in compliance with the standard
EN 61010-1, taking into consideration the following:

• Pollution level: 2
• Measurement category: II

Input parameters:

• Input signal: DC current or DC voltage
• Measurement range: 0-20 mA / 4-20 mA / 0-10 V / 2-10 V / 0-5 V
• Overrange: ±50 mA (current input), ±200 V (voltage input)
• Sampling: 12 measurement / sec.
• Number of averaged samples: 1 / 2 / 4 / 8 / 16 / 32 / 64 (selectable)
• Error of displayed value: < 0.02% (Ta = 23 °C ±2 °C)

Output parameters:
Analogue output (optional):

• Output type: 1 active or passive DC current (scalable)
• Range: 0-20 mA / 4-20 mA
• Burden: 600 ohm (max.)
• Error: < 0.03% (Ta = 23 °C ±2 °C) < 0.4% (Ta = 0 – +60 °C)

Limit outputs (optional):

• Outputs: 2 NO SPST relays
• Contact rating: 30 VDC, 3 ADC / 240 VAC, 3 AAC

Transmitter supply (optional):

• Output voltage: 15 VDC ±10% @ 30 mA,16 VDC ±10% @ 4 mA
• Output current: 30 mA max.
• Isolation voltage: 0.5 kV

Communication interface (optional):

• Type: RS232 or RS485 (isolated)
• Protocol: MODBUS RTU slave
• Baud rate: 300 / 600 / 1200 / 2400 / 4800 / 9600 Baud

Display:

• Display: 5 digit (+ values), 4 digit (- values), negative sign, decimal point
• Display unit: 5 digit LED, 20.3 mm character height
• Display color: red

Manual controls:

• Manual controls: 3 membrane push-buttons on the front cover

Power supply:

• Power supply: 24 VDC ±10% (DT9222 ...); 230 V AC/DC ±10% (DT9222 ... PS)
• Consumption: 3.5 W / 6 VA

Ambient conditions:

• Operating temperature range: 0 - +60 °C (-20 - +60 °C for customer request)
• Relative humidity: 90% (max., non-condensing)
• Place of installation: cabinet

Electromagnetic compatibility (EMC) accordance with the standard EN 61326-1

• Immunity: Industrial area
• Noise emission: Group 1, Class B

General data:

• Housing: moulded polycarbonate case, installable as a field or panel instrument
• Connection: IP65 cable entry, plug-in screw terminal / push-in direct connection
• Connection cable: 0.25-1.5 mm2 (max.)
• Dimensions: 167 × 87 × 88 mm (width × height × depth) as a panel instrument; 167 × 107 × 68 mm (width × height × depth) as a field instrument
• Weight: 0.8 kg
• Protection: IP65

Detailed information see in operating instructions. The Manufacturer maintans the right to change the technical data!
