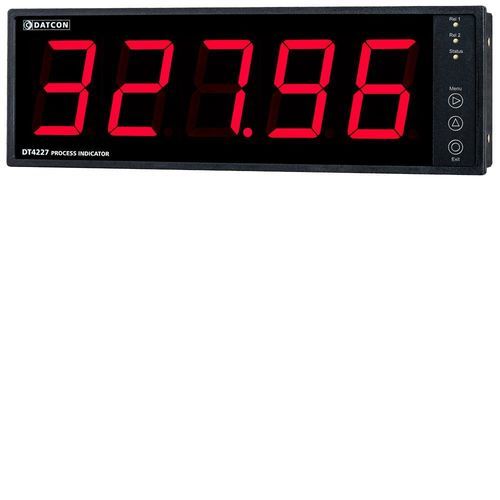

Process indicator DT4227 UI

LED5-digitpanel-mount

Product features

• 0-20 mA / 4-20 mA / 0-10 V / 2-10 V / 0-5 V input signal ranges
• display in physical units
• large 5-digit LED display, 57 mm character height
• adjustable brightness
• 20 VDC supply voltage for powering a 4-20 mA passive transmitter
• 0.05% accuracy
• easy adjustment via front panel pushbuttons or via USB interface, with free setting program
• dual limit relay output
• 24 VDC ± 10% or 230 V AC/DC ± 10% powered versions
• 288 × 96 mm panel instrument,
• IP52 front, IP20 back

Product description
The DT4227 UI … Process indicator is used to display the signal of measuring transducers with 0-20 mA / 4-20 mA / 0-10 V / 2-10 V / 0-5 V output in physical measurement units. Any display range can be assigned to the input signal range.
The DT4227 UI has a 5-digit, 57 mm character height LED display that can be read easily from a distance of up to 30 m, the brightness of the display can be adjusted.
A 20 VDC supply voltage is available at the input to power a passive 4-20 mA transmitter.
The device has dual limit relay outputs (SPST), which are freely programmable, and several limit modes can be selected.
The front panel push buttons allow you to set the operating parameters via a simple menu system or via a USB interface with a single-screen (free) setup program: input signal range selection, input signal averaging, scaling, display frequency, display brightness, limit values, limit value modes, etc.
The device is available with two power supply options:

• DT4227 UI type 24 VDC ± 10%,
• DT4227 UI PS type 230 V AC/DC ± 10%.

Technical specifications
Safety data: The input, output connection terminals and the power supply connection terminal of the device are separated from
each other, the separation complies with the requirements of MSZ EN 61010-1, taking into account the following.

• Pollution degree: 2
• Measurement category: II

Input characteristics:

• Input signal: DC current or DC voltage
• Measurement ranges: 0–20 mA / 4–20 mA / 0–10 V / 2–10 V / 0–5 V
• Overrange capability: ± 50 mA (current input), ± 200 V (voltage input)
• Measuring time: 12 / 60 / 100 / 200 / 300 / 500 ms
• Accuracy:
• Temperature dependency: ± 25 ppm / °C (max.)

Output characteristics:
Limit outputs:

• Outputs: 2 x SPST NO relay contacts
• Contact rating: 30 VDC, 3 ADC / 240 VAC, 3 AAC

Transmitter supply:

• Output voltage: 20 VDC @ 20 mA
• Output current: 25 mA max.

Display:

• Display range: 5 digit (+ values), 4 digit (- values), sign, decimal point
• Display: 5 digit LED, 57 mm character height
• Indicator LED’s: 2 pcs. for limit display, yellow
• Display refreshing time: 0.01 / 0.1 / 0.3 / 0.5 / 1.0 / 2.0 sec

Manual controls:

• Manual controls: 3 pcs. front panel push button

Configuration port:

• Connector: USB-mini
• Standard: USB 3.0 (recommended)

Power supply:

• Supply voltage: 24 VDC ± 10% (DT4227 UI); 230 V AC/DC ± 10% (DT4227 UI PS)
• Consumption: 3 W (DT4227 UI); 5 VA / 3.5 W (DT4227 UI PS)

Ambient conditions:

• Operating temperature range: 0 – +60 °C (on request: -20 – +60 °C)
• Storage temperature range: -25 – +70 °C
• Relative humidity: 90% (max., non-condensing)
• Place of installation: cabinet

Electromagnetic compatibility (EMC) accordance with the standard EN 61326-1:

• Immunity: industrial area
• Noise emission: Group 1, Class B

General data:

• Housing: panel instrument
• Connection: plug-in screw terminal
• Connection cable: 2.5 mm2 (max.)
• Dimensions: 288 × 96 × 78 mm (width × height × depth)
• Weight: 0.7 kg
• Protection: IP52 front, IP20 back

Detailed information is in operating instructions. The Manufacturer maintains the right to change the technical data!
