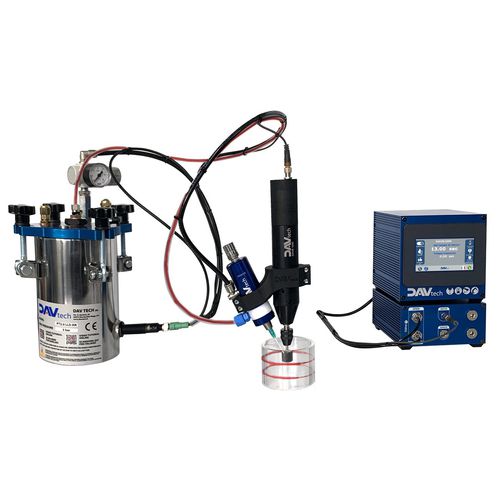

Anaerobic glue dispensing system

for primerscontained

The centrifugal dispensing system allows controlled and contactless application of fluid beads with medium and low viscosity on holes, cylindrical seats, etc. The fluid is contained in a tank where the level can be monitored. Downstream of the tank, a dispensing valve dispenses the fluid onto a special terminal connected to an electric motor. The rotational speed propels the fluid outward by centrifugal force, ensuring a highly precise bead on the hole walls without requiring movement. The controller manages the process and its operating parameters. FEEDING • PT2 LLS-AN pressurized tank with safety valve and inlet pressure regulator, ideal for Loctite/Loxeal anaerobic products, without the need for transfer. • Capacitive level sensor for low-level alerts, interfaced with the controller. DISPENSING • Diaphragm or needle dispensing valve for micro-dispensing control. • Rotating centrifugal dispensing system for 360° contactless applications, with adjustable speed. PROCESS CONTROL • HMI/PLC controller for Dispensing process management, 4.3” color display. • Dedicated multilingual graphical interface. • Easy interface with external PLCs via dedicated I/O ports. • Cycle counter function, with good (OK) – no good (KO) feedback. • Ability to create multiple recipes. • Possibility to interface part presence or dispensing checksensors. • Direct control of the double-acting operation of one or more valves. Anaerobic glue Primer Other
