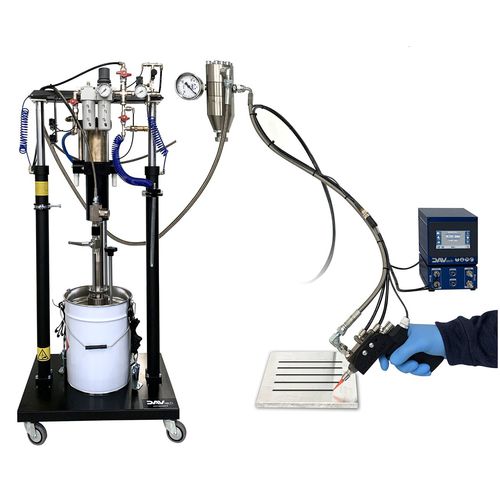

Single-component resin dispensing system

adhesiveoilgrease

The manual dispensing system for grease or sealants features a double-acting needle valve with an ergonomic handle and an electric switch to start dispensing. The fluid is pressurized and supplied by a piston pump, with a pressure stabilizer in series. The Dispensing valve is operated by a manual button, interfaced with the controller, which allows timing the dispensing cycle. FEEDING • Follower plate pump for drums, available in various sizes, with a follower plate sized for the original drum. • Fluid pressure stabilizer for high-pressure applications, with a gauge and screw adjustment. DISPENSING • Double-acting needle valve with an ergonomic 3D-printed handle and electric switch for direct start control. PROCESS CONTROL • HMI/PLC controller for Dispensing process management, 4.3” color display. • Dedicated multilingual graphical interface. • Easy interface with external PLCs via dedicated I/O ports. • Cycle counter function, with good (OK) – no good (KO) feedback. • Ability to create multiple recipes. • Possibility to interface part presence or dispensing checksensors. • Direct control of the double-acting operation of one or more valves. 1K resin Epoxy adhesive Grease Oil Sealant
