Oil filling system

for epoxy adhesiverelease agentprimer

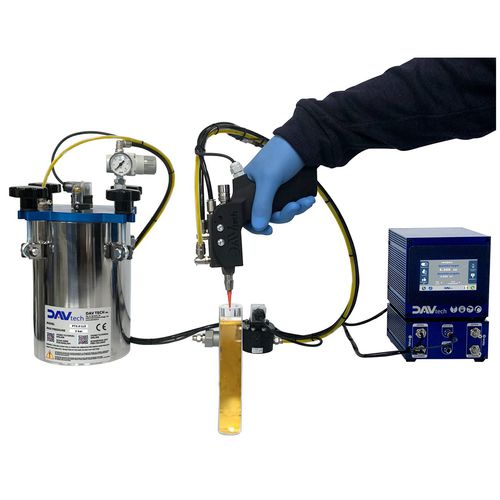

This dispensing system allows controlled fluid filling with adjustable quantities using a volumetric counter. The fluid is supplied under pressure from tanks of various capacities. Before entering the needle valve, it passes through a gear volumetric counter. The counter has a known flow rate per revolution and sends an impulse to the controller for each rotation. Once the target quantity is reached, the controller closes the valve, making the system volumetric and insensitive to variations in flow rate, pressure, and viscosity. FEEDING • Pressurized tank (available in various sizes and versions) with pressure regulator and level control. DISPENSING • Needle dispensing valve for immediate start and stop of the flow. • Gear volumetric counter, directly interfaced with the controller, available in different sizes depending on the required flow rates. PROCESS CONTROL • HMI/PLC controller for Dispensing process management, 4.3” color display. • Dedicated multilingual graphical interface. • Easy interface with external PLCs via dedicated I/O ports. • Cycle counter function, with good (OK) – no good (KO) feedback. • Ability to create multiple programs. • Possibility to interface part presence or dispensing checksensors. • Direct control of the double-acting operation of one or more valves. Epoxy adhesive Oil Primer Release agent
