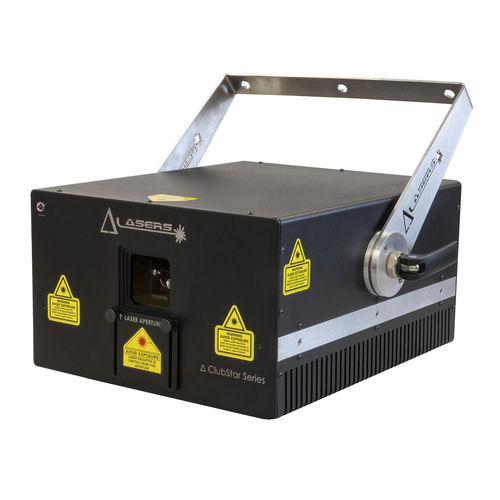

Digital laser projector Delta ClubStar 8-FB4

Product overview
Delta ClubStar 8-FB4 is a compact RGB diode laser projector designed for club laser shows, indoor and outdoor events, permanent installations, touring and hire. The precision optical system produces a low-divergence beam and accurate color balance. Optical components are isolated from dust and the sealed housing and internal layout make the unit suitable for fixed or mobile use.

Key features

• RGB diode laser source with total optical power 7500 mW (R: 2000 mW / G: 2500 mW / B: 3000 mW)
• Low beam divergence (1 mrad) and wide scanning capability up to 85°
• Multiple control interfaces: Ethernet, ArtNet, DMX, ILDA, PC, lighting console, Autoplay
• Integrated hardware options: FB-4 Standard, FB-4 ILDA, FB-4 MAX
• Scanning systems: DT-50 series (42–45 kpps @ 8° ILDA); EMS-9000 DIGI available on request
• Thermal management: TEC with silent fans; protection class IP44; Laser class IV

Technical table

• Optical laser power: 7500 mW total (R:2000 / G:2500 / B:3000)
• Wavelengths: 638 nm (red) / 530 nm (green) / 445 nm (blue)
• Beam divergence: 1 mrad
• Scanning: DT-50 (42-45 kpps @ 8° ILDA); EMS-9000 DIGI on request
• Optical scanning angle: up to 85°
• Control signals: Ethernet, ArtNet, DMX, ILDA, PC, lighting console, Autoplay
• Integrated hardware: FB-4 Standard; FB-4 ILDA; FB-4 MAX
• Cooling: TEC and silent fans
• Safety: Remote control IN/OUT; Interlock: KeyLock, aperture mask
• Technology: Diode; Modulation: Analog (100 kHz); Laser class: IV
• Protection class: IP44
• Power supply: 100-230 VAC, 50-60 Hz (Neutrik powerCON TRUE1)
• Max power consumption: 300 W
• Operating temperature: 10°C to 40°C
• Dimensions (W x D x H): 336 x 320 x 170 mm; Weight: 13.5 kg

Included / Optional accessories

• 1.5 m power lead
• Stainless steel mount
• Flight case (optional)

Specifications / technical data

• Optical laser power: 7500 mW total (R:2000 / G:2500 / B:3000)
• Wavelengths: 638 / 530 / 445 nm
• Beam divergence: 1 mrad
• Scanning options: DT-50 (42-45 kpps @ 8° ILDA); EMS-9000 DIGI on request
• Control interfaces: Ethernet, ArtNet, DMX, ILDA, PC, lighting console, Autoplay
• Integrated hardware options: FB-4 Standard, FB-4 ILDA, FB-4 MAX
