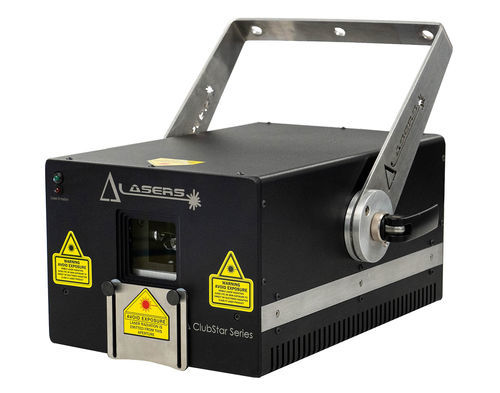

Laser projector Delta ClubStar 3

Overview
The ClubStar series is designed for club laser shows and live events. Its compact footprint simplifies installation while the precision optical system produces a low-divergence beam with vivid colors and balanced whites. Delta ClubStar 3 is offered with selectable output from 3 W up to 4 W in the same enclosure. The unit integrates a DT-40 scanning system (40 kpps @ 8°) with 7 mm mirrors, optimized for this scanner class. The system is suitable for both entry-level operators and professionals thanks to straightforward operation and multifunctional control options.

Key features

• Compact, lightweight housing for easy mounting and installation
• Precision optics yielding low beam divergence and bright, color-accurate output
• Selectable optical output: 3 W to 4 W in the same chassis
• High-performance scanners: DT-40, 40 kpps @ 8° with 7 mm mirrors
• Controls and connectivity suitable for beginners and professionals (ILDA IN/OUT, optional Pangolin FB-4)

Product details (table)
Optical laser power (mW): 3000
Wavelength (nm): 638 / 530 / 445
Laser source RGB power (mW): R: 500 mW / G: 900 mW / B: 1.6 W
Beam divergence (mrad): 1.2
Control signal: ILDA IN/OUT
Integrated hardware: Pangolin FB-4 (on request)
Scanning system: DT-40 / 40 kpps @ 8° ILDA
Scanner function: Manual Invert X, Y
Optical scanning angle: 60° Max
Laser cooling: Silent Fans
Safety function: Remote control IN/OUT
Interlock: KeyLock, Aperture mask
Technology: Diode
Laser class: IV
Modulation: Analog (50 kHz)
Protection class: IP44
Accessories: Stainless steel mount
Operating temperature: 0°C to +40°C
Power connectors: powerCON TRUE1 TOP
Consumption: 250W / 220VAC
Power supply: 110 ~ 240 VAC 50/60 Hz
Weight: 5 kg

Technical specifications

• Optical laser power: 3000 mW
• Wavelengths: 638 nm (red) / 530 nm (green) / 445 nm (blue)
• RGB source power breakdown: R 500 mW, G 900 mW, B 1.6 W
• Beam divergence: 1.2 mrad
• Control: ILDA IN/OUT
• Optional integrated hardware: Pangolin FB-4
• Scanning: DT-40 scanners, 40 kpps @ 8°, 7 mm mirrors
• Scanner functions: Manual invert X and Y
• Max optical scanning angle: 60°
• Cooling: Silent fans
• Safety: Remote control IN/OUT; interlock with KeyLock and aperture mask
• Technology: Diode
• Laser class: Class IV
• Modulation: Analog (50 kHz)
• Protection class: IP44
• Accessories included: Stainless steel mount
• Operating temperature range: 0°C to +40°C
• Power connector: powerCON TRUE1 TOP
• Consumption: 250 W (220 VAC)
• Power supply: 110–240 VAC, 50/60 Hz
• Weight: 5 kg
