Digital laser projector Delta Logis 8

2DIP65waterproof

Product overview

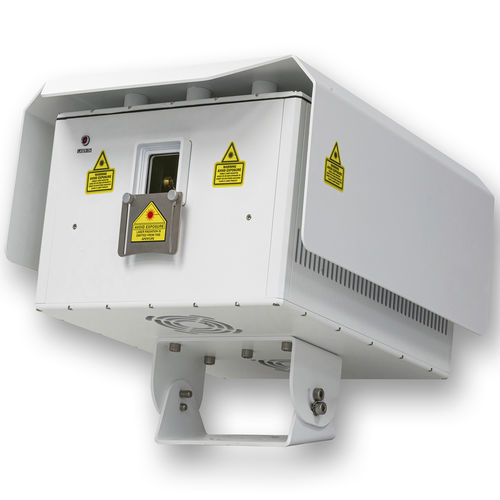

This professional outdoor projection laser is built in a solid aluminum housing and designed for outdoor laser advertising, façade illumination and architectural lighting with fixed mounting. The system uses an RGB diode laser source with a total optical output of 8000 mW and low beam divergence for sharp, high-visibility projections. It integrates an EMS-8000 Digi high-precision scanner and a built-in Pangolin FB-4 SE interface with Ethernet (LAN) for easy pre-programming of logos, texts and graphics as well as real-time control via ArtNet, PC or lighting console. IP65 protection and included installation accessories make it suitable for permanent outdoor installations.

Key features

• Solid aluminum outdoor housing
• RGB multicolor diode laser source — total optical power 8000 mW
• Low beam divergence for sharp projections
• High-precision EMS-8000 Digi scanning system
• Integrated Pangolin FB-4 SE hardware with Ethernet (LAN)
• Supports autoplay (pre-programmed) and real-time control (ArtNet, PC, lighting console)
• Ingress protection IP65 for outdoor use
• Includes accessories: 15 m power cable, 15 m Ethernet cable, wall mount bracket

Technical data

• Optical laser power (mW): 8000
• Wavelengths (nm): 638 (R) / 525 (G) / 445 (B)
• Per-color power: R 2000 mW / G 3000 mW / B 3000 mW
• Beam divergence (full angle): 0.8 mrad
• Laser technology: Diode
• Laser safety class: Class IV
• Control interfaces: Ethernet, ArtNet, Autoplay, PC or Lighting Console
• Integrated hardware: Pangolin FB-4 SE
• Scanning system: EMS-8000 Digi (45–60 Kpps @ 8°)
• Maximum optical scanning angle: 54°
• Safety: Keylock, optional Remote control IN
• Modulation: Analog, 100 kHz
• Ingress protection: IP65
• Accessories included: 15 m power cable, 15 m Ethernet cable, wall mount bracket
• Operating temperature: -20°C to +40°C
• Power input: 100–240 VAC 50/60 Hz, consumption 350 W
• Power connectors: Stainless steel glands
• Weight: 23.5 kg
