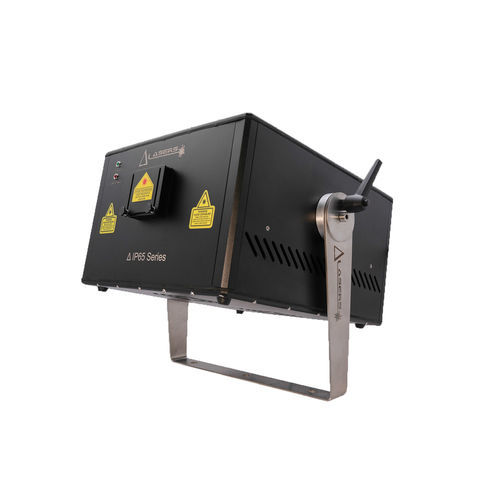

Profile laser projector Delta 8

for markingcontour2D

Product overview
Designed for outdoor projection and open-air events, the Delta 8 IP65 is an RGB projection laser delivering 8 W total optical power (8000 mW). It integrates a fast scanning system (DT-50, 42 kpps@8° ILDA) for precise graphics and clear beam projection. The unit features an IP65-rated housing for weather protection and supports external control via ILDA and optional Pangolin FB-4 hardware.

Applications

• Laser shows and entertainment
• Advertising and brand projection
• Architectural projection and mapping
• Logos, lettering and signage

Technical specifications

• Optical laser power: 8000 mW (8 W)
• Wavelengths: 638 nm (red) / 530 nm (green) / 445 nm (blue) — 462 nm optional
• RGB laser power: R 2000 mW / G 3000 mW / B 3000 mW
• Beam divergence: 1.1 mrad
• Control: ILDA IN/OUT (standard cable 2.5 m, customizable)
• Integrated hardware: Pangolin FB-4 (on request)
• Scanning system: DT-50 — 42 kpps @ 8° ILDA
• Scanner functions: manual invert X, Y
• Max optical scanning angle: 60°
• Cooling: TEC + silent fans
• Interlock: key lock, remote emergency stop, aperture masking, LED emission indicator, 60 s emission delay
• Technology: diode laser
• Laser class: Class IV
• Modulation: analog up to 100 kHz
• Protection rating: IP65 (waterproof)
• Included accessory: stainless steel mount
• Operating temperature: 0 °C to +40 °C
• Power connector: powerCON TRUE1
• Power consumption: 550 W (220 VAC)
• Power supply: 110–240 VAC, 50/60 Hz
• Weight: 19.5 kg

Options & accessories

• Pangolin FB-4 hardware integration (on request)
• Custom ILDA cable lengths
• Optional 462 nm wavelength
• Stainless steel mounting bracket included
