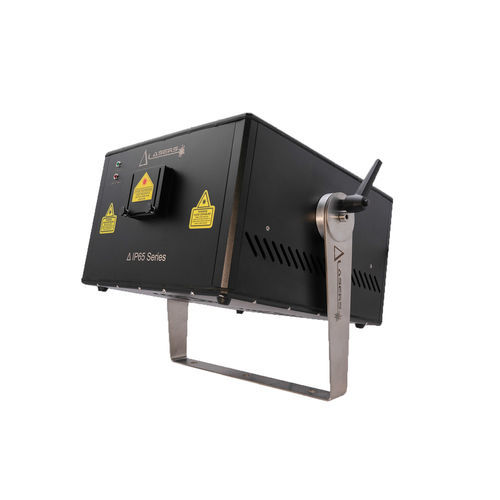

IP65 laser projector Delta 6

waterproof

Product overview
Projection laser specifically engineered for outdoor/open-air events. Equipped with an RGB diode laser source delivering 6,000 mW total (R:1000 mW, G:2000 mW, B:3000 mW). Fast DT-50 scanning system ensures clear vector projection. Robust sealed housing with IP65 protection for permanent outdoor installation. Optional Pangolin FB-4 integration and ILDA connectivity for show control.

Applications

• Laser shows and live events
• Advertising projections
• Architectural mapping and facades
• Logo and typography projection
• Static outdoor installations

Technical data (table)
Optical laser power (mW): 6000
Wavelengths (nm): 638 / 530 / 445
Laser source RGB power (mW): R:1000 / G:2000 / B:3000
Beam divergence (mrad): 1.1
Control signal: ILDA IN/OUT (cable length – 2.5 m or customizable)
Integrated hardware: Pangolin FB-4 (on request)
Scanning system: DT-50 / 42 kpps @ 8° ILDA
Scanner functions: Manual invert X, Y
Optical scanning angle: 60° max
Laser cooling: TEC + silent fans
Interlock: Key lock; Remote emergency stop; Aperture masking; LED emission indicator; Emission time delay 60 s
Technology: Diode
Laser class: IV
Modulation: Analog (50 kHz)
Protection class: IP65
Accessories: Stainless steel mount
Operating temperature: 0°C to +40°C
Power connectors: powerCON TRUE1
Consumption: 300 W / 220 VAC
Power supply: 110–240 VAC 50/60 Hz
Weight: 18.5 kg

Characteristics / Technical specifications

• Optical laser power: 6000 mW
• Wavelengths: 638 nm (R) / 530 nm (G) / 445 nm (B)
• RGB power split: R 1000 mW, G 2000 mW, B 3000 mW
• Beam divergence: 1.1 mrad
• Control: ILDA IN/OUT (customizable cable length)
• Integrated hardware option: Pangolin FB-4
• Scanner: DT-50, 42 kpps @ 8° ILDA
• Max optical scanning angle: 60°
• Cooling: TEC + silent fans
• Interlock features: key lock, remote emergency stop, aperture masking, LED indicator, 60 s emission delay
• Technology: diode laser
• Laser class: IV
• Modulation: Analog 50 kHz
• Protection class: IP65 (suitable for outdoor use)
• Accessories: stainless steel mount
• Operating temperature range: 0°C to +40°C
• Power connectors: powerCON TRUE1
• Power consumption: 300 W
• Input voltage: 110–240 VAC 50/60 Hz
• Weight: 18.5 kg
