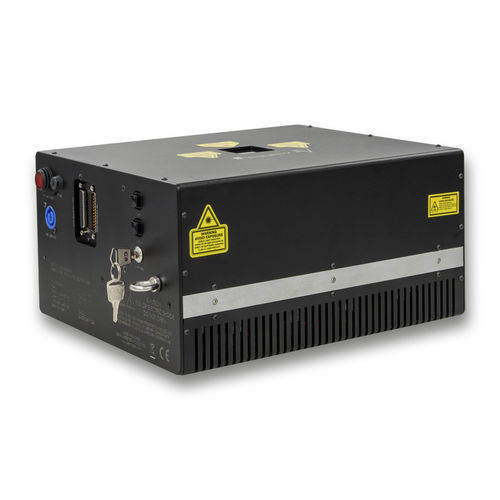

Beam bar laser projector Delta ClubStar G3

Short description
Delta ClubStar Vertical laser projectors are designed for artists, show productions, laser-man shows and club performances. The vertical emission simplifies installation and targeting for dedicated vertical shows. Models are available in RGB from 3W to 8W and in single-green from 1W to 4W, with options for higher-precision scanners and robust housings suitable for permanent installation, touring or rental.

Key features

• Vertical emission design for straightforward installation in vertical show configurations
• Power range: single-color green up to 4W; RGB up to 8W (example listing: 3W RGB variant)
• Robust housing suitable for permanent installation, touring and rental
• Wide scanning system DT-50 (42-45 kpps @ 8°) with 7 mm mirrors; EMS-8000 / EMS-9000 Digi available on request
• Multiple control options: Ethernet, ArtNet, DMX, ILDA, PC, lighting console or autoplay

Optical and control data
Optical laser power (mW): 3000
Wavelength (nm): 530 ±5
Laser source RGB power (mW): G:3000 (example variant)
Beam divergence (mrad): 0.85
Control signal: Ethernet, ArtNet, DMX, ILDA, PC, lighting console or autoplay

Integrated hardware

• A: FB-4 Standart
• B: FB-4 ILDA
• C: FB-4 MAX
• D: ONLY ILDA IN/OUT

Scanning system
DT-50 / 42-45 kpps @ 8° ILDA; EMS-9000 DIGI available on request

Cooling, safety and protection
Laser cooling: TEC, silent fans
Safety functions: remote control IN/OUT
Interlock: KeyLock, aperture mask
Protection class: IP44

Accessories

• 1.5 m power lead
• Stainless steel mount
• Flight case

Technical specifications

• Optical laser power (mW): 3000
• Wavelength (nm): 530 ±5
• Laser source RGB power (mW): G:3000
• Beam divergence (mrad): 0.85
• Control signal: Ethernet, ArtNet, DMX, ILDA, PC, lighting console or autoplay
• Integrated hardware: A: FB-4 Standart; B: FB-4 ILDA; C: FB-4 MAX; D: ONLY ILDA IN/OUT
• Scanning system: DT-50 / 42-45 kpps @ 8° ILDA; EMS-9000 DIGI (on request)
• Optical scanning angle: 60° max
• Laser cooling: TEC, silent fans
• Safety functions: remote control IN/OUT
• Interlock: KeyLock, aperture mask
• Technology: Diode
• Laser class: IV
• Modulation: Analog (100 kHz)
• Protection class: IP44
• Accessories: 1.5 m power lead, stainless steel mount, flight case (included/available)
• Operating temperature: 10°C ~ 40°C
• Power supply: 100-230 VAC / 50-60 Hz
• Max power consumption: 300 W
• Size: W:336 x D:320 x H:170 mm
• Weight: 12 kg
