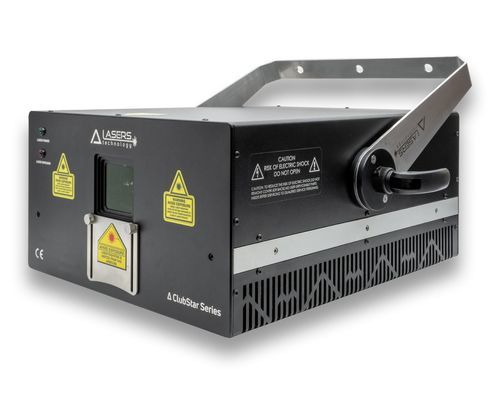

Beam bar laser projector Delta ClubStar 12-FB4

IP54

Product overview
The Delta ClubStar 12-FB4 is a professional diode laser projector for club laser shows and indoor/outdoor events. Its compact design facilitates installation for fixed venues, touring or rental applications. The precision optical system provides low beam divergence and accurate color balance via analog modulation down to 1%. The unit delivers 12,000 mW optical output (R/G/B: 4000 mW each) and supports DT-50 scanning (42–45 kpps @ 8°); EMS-8000 DIGI scanning is available on request.

Technical specifications (table)
Optical laser power (mW): 12,000
Wavelength (nm): 638 / 530 / 445
Laser source RGB power (mW): R: 4000 mW / G: 4000 mW / B: 4000 mW
Beam divergence (mrad): 0.95
Control signal: Ethernet, ArtNet, DMX, ILDA, PC, Lighting Console or Autoplay
Integrated hardware: A: FB-4 Standard; B: FB-4 MAX
Scanning system: DT-50 / 42-45 kpps @ 8° ILDA; EMS-8000 DIGI (on request)
Optical scanning angle: 85° Max
Laser cooling: TEC, temperature-controlled silent fans
Safety function: Remote control IN/OUT
Interlock: KeyLock
Technology: Diode
Laser class: IV
Modulation: Analog (100 kHz)
Protection class: IP54
Accessories: 1.5 m power lead, stainless steel mount; Flight case
Operating temperature: 5°C ~ 40°C
Power supply: 100-230 VAC / 50-60 Hz, Neutrik powerCON TRUE1
Max power consumption: 300 W
Size: W: 376 x D: 330 x H: 170 mm
Weight: 17.5 kg

Characteristics / technical features

• Optical laser power: 12,000 mW
• Wavelengths: 638 nm (red), 530 nm (green), 445 nm (blue)
• RGB power distribution: R 4000 mW / G 4000 mW / B 4000 mW
• Beam divergence: 0.95 mrad
• Control interfaces: Ethernet, ArtNet, DMX, ILDA, PC, lighting console, autoplay
• Integrated hardware options: FB-4 Standard or FB-4 MAX
• Scanning options: DT-50 (42-45 kpps @ 8° ILDA) or EMS-8000 DIGI (on request)
• Maximum optical scanning angle: 85°
• Cooling system: TEC plus temperature-controlled silent fans
• Safety features: Remote control IN/OUT; KeyLock interlock
• Technology: Diode laser, Class IV
• Modulation: Analog up to 100 kHz
• Protection rating: IP54
• Accessories included/available: 1.5 m power lead, stainless steel mount, flight case
• Operating temperature range: 5°C to 40°C
• Power supply requirements: 100-230 VAC, 50-60 Hz, Neutrik powerCON TRUE1
• Maximum power consumption: 300 W
• Dimensions (W x D x H): 376 x 330 x 170 mm
• Weight: 17.5 kg
