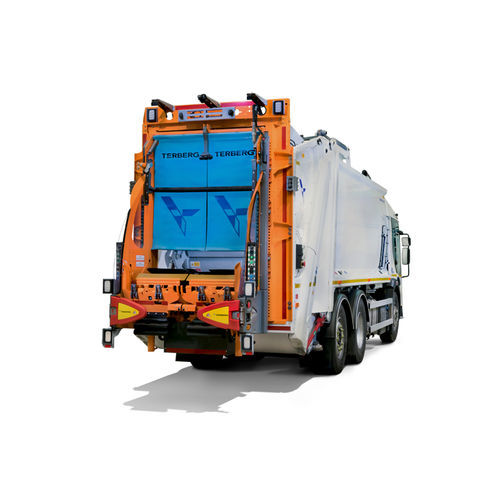

Hydraulic bin lifter OmniDEL

Offering robust build, minimal maintenance and a safe operation synonymous with the Terberg brand the OmniDEL offers twin split lifting chairs that are perfect for high volume, high density urban collections of two-wheeled bins. OmniDEL also switches seamlessly to 4-wheel commercial container mode to enable emptying of larger containers thanks to our intelligent, time-saving 4-wheel recognition and Auto Gather features. The OmniDEL employs unique Terberg geometry that delivers a super steep container discharge angle of 50° ensuring that most materials are discharged first time, our intelligent sonar sensor bin-shaking function activates automatically to remove any "sticky" materials should this not happen. SPECIFICATIONS Cycle Time: 2-wheel containers 6-7 sec. 4-wheeled 10-12 sec Handling Capacity: 170kg (split) / 500kg (linked) Noise Level: < 65 dB(A) Mounting Method: DIN Frame Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5 Operation Mode: Automatic & Manual Weight: 595 kg Hydraulic Requirements: ideal 40 l/min., maximum 60 l/min., 180 bar Auto-Gather: Yes Diagnostic Display: Yes
