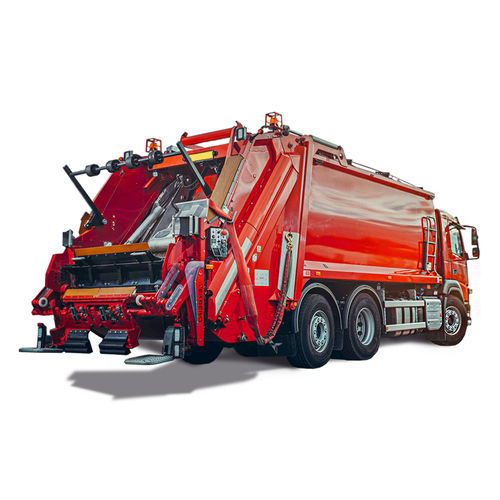

Hydraulic bin lifter Olympus EuroTRADE WLS

The Olympus EuroTRADE-Winch Lock and Shake (WLS) binlift expands the standard EuroTRADE's abilities and can be used to empty recycling skips and collect compressed bales of recyclable waste. Unique geometery gives a 55° tipping angle with no 'kick out' of the container towards the operator when lifting cycle starts Multifunctional bin-lift system to handle a wide variety of container sizes/types without adjustment Master/slave hydraulic system means that the bin lift comb is level every single time Winch, Lock and Shake (WLS) feature to handle recycling skips Bale clamp option for compressed paper or cardboard Remote control option for 4000kg capacity winch SPECIFICATIONS Cycle Time: 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec skips 40 sec Handling Capacity: 170kg (2-wheel) / 750kg (4-wheel)/2000 skip Noise Level: < 65dB(A) Mounting Method: Integrated on Olympus tailgate Operation Mode: Manual Weight: 650kg Hydraulic Requirements: Ideal 40 l/min., maximum 60 l/min., 180 bar Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5 Auto-Gather: Yes Diagnostic Display: No
