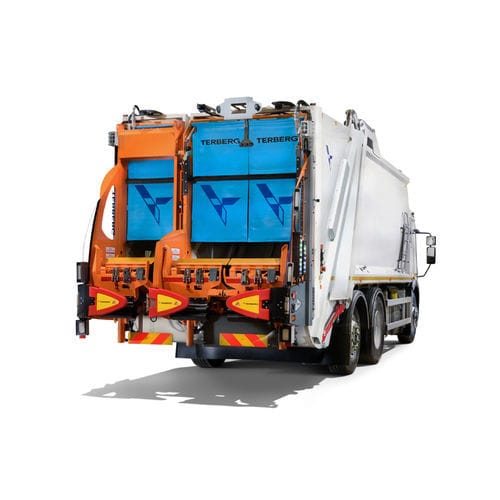

Hydraulic bin lifter OmniDEL Triple

Developed to be the perfect partner to longitudinally split RCV compaction bodies, the OmniDEL Triple works harmoniously with 70/30 or 30/70 split bodies. OmniDEL Triple offers a twin chair configuration providing fully automatic handling for 2-wheel bins on the 70% side complete with a time-saving 4-wheel auto gather mode to seamlessly switch the dual chair into a fully capable commercial 4-wheel container handling solution that switches back to automatic 2-wheel domestic mode when finished. The single chair offers a superb fully automatic operation for 2-wheel bins being loaded into the 30% split of the RCV. Both the single and dual sections of the OmniDEL Triple come as standard with intelligent automatic bin-shaking and drop down hopper plates to enable hand-loading. The OmniDEL Triple is the best available low level automatic solution for all 70/30 split RCV bodies with a robust build, safe operation and minimal maintenance. SPECIFICATIONS Cycle Time: 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec Handling Capacity: 170kg (split) / 500kg (linked) Noise Level: < 65dB(A) Mounting Method: Terberg Frame Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5 Operation Mode: Automatic & Manual Weight: 800 kg Hydraulic Requirements: ideal 40 l/min., maximum 60 l/min., 180 bar Auto-Gather: Yes Diagnostic Display: Yes
